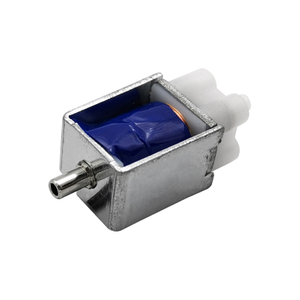

Air Valve for Blood Pressure Monitor

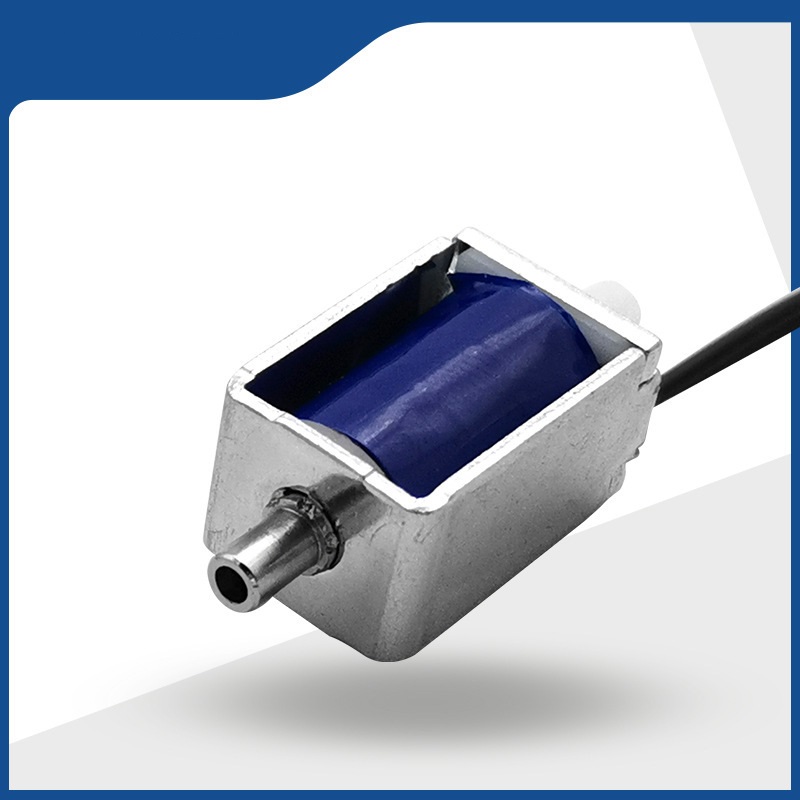

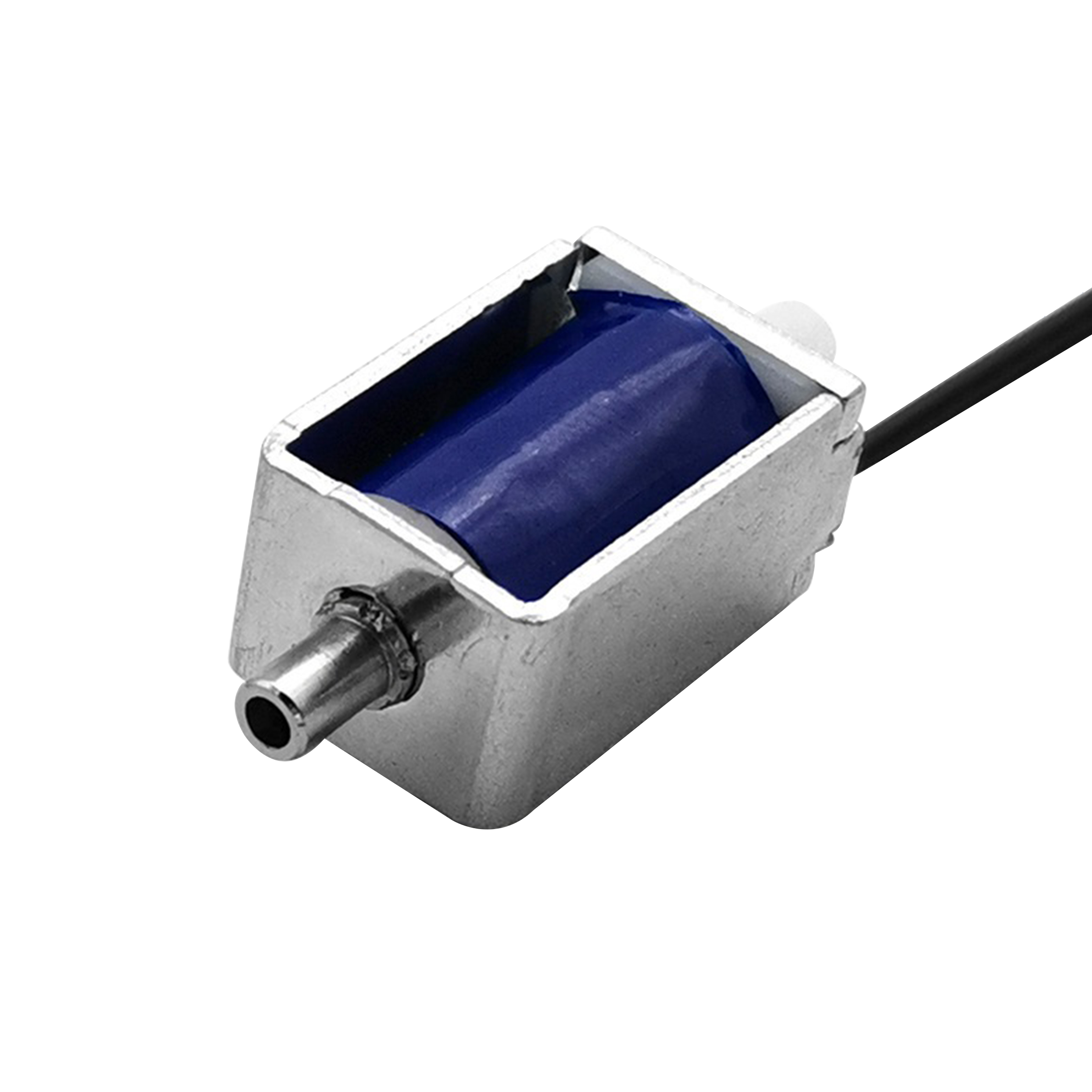

The PYF2 - XA is an exceptional miniature Mini solenoid valve, specifically designed to meet the stringent requirements of blood pressure monitors and a wide range of other applications. Weighing approximately 15g, its compact size makes it highly adaptable for various devices.

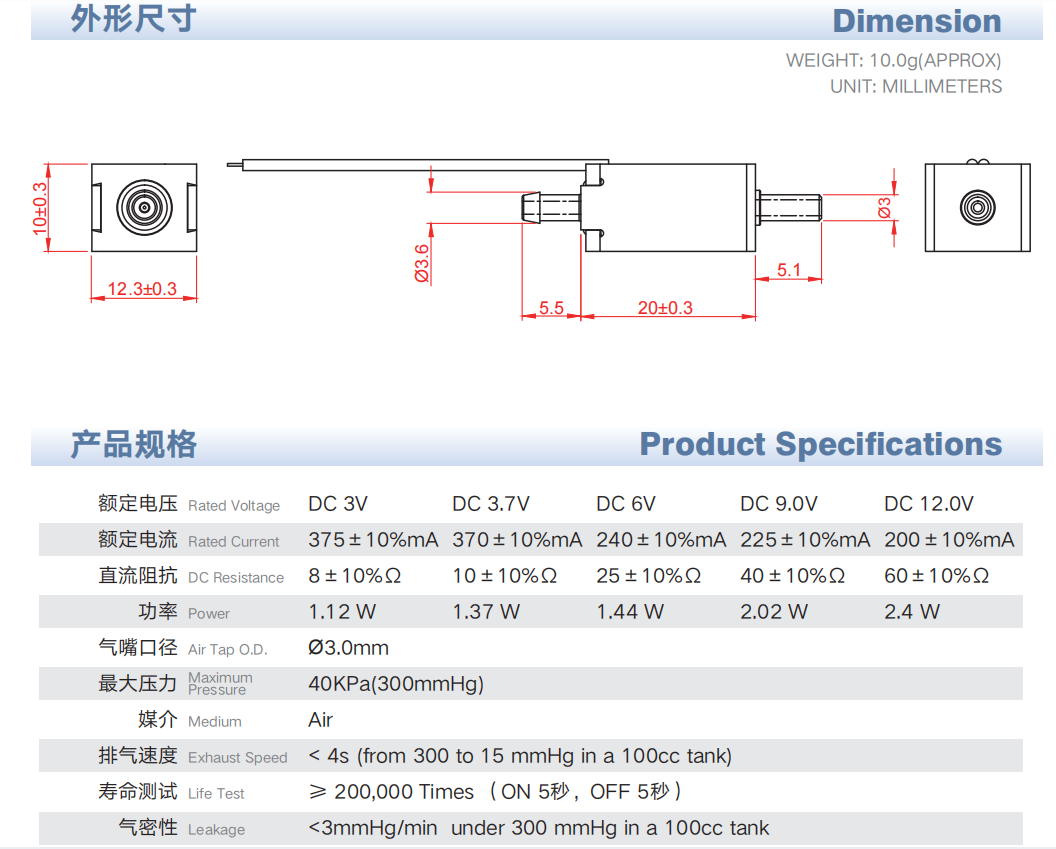

This air valve for blood pressure monitors offers a versatile range of rated voltage options, including DC 3V, DC 3.7V, DC 6V, DC 12V, and DC 24V, catering to different power - supply needs. With an air tap O.D. of Ø3.0mm and a maximum pressure capacity of 40KPa (300mmHg), it provides precise and stable air control.

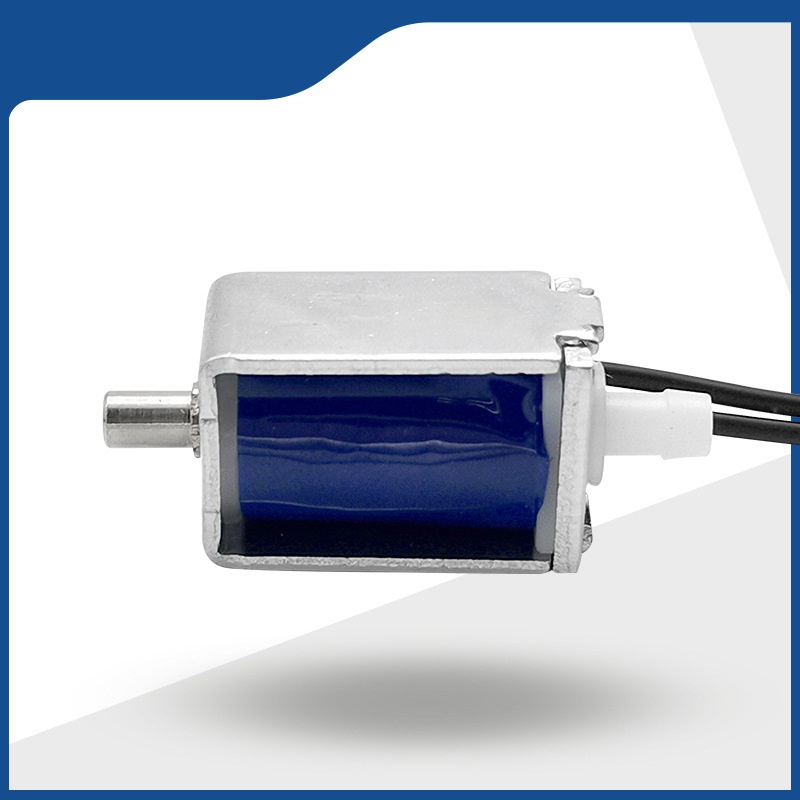

In blood pressure monitors, its quick exhaust speed of <4s (from 300 to 15 mmHg in a 100cc tank) is crucial for accurate pressure measurement and rapid deflation. The normally closed mini air solenoid valve is excellent airtightness, with leakage <3mmHg/min (under 300 mmHg in a 100cc tank), ensures reliable performance and consistent readings.

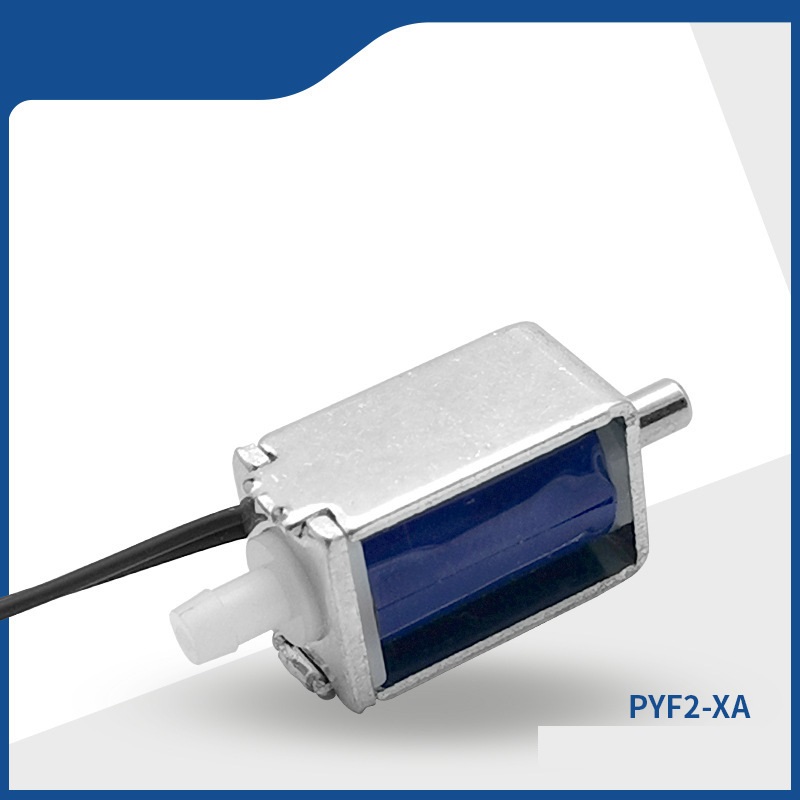

Moreover, with a life test of ≥200,000 times (ON 5s, OFF 5s), low voltage air solenoid valve guarantees long - term durability. Operating within a temperature range of 0 - 50°C and 30% to 85%RH, it can withstand normal environmental conditions. Beyond blood pressure monitors, it is also suitable for home appliances, medical, beauty, and massage products, making the 3v dc micro solenoid valve 2 way a reliable and essential component for a variety of applications.

Miniature Mini solenoid valve is designed to operate within a specified humidity range of 30% - 85%RH. If the ambient humidity stays within this range, it can generally function properly. However, if the environment has a relatively high humidity for an extended period, especially in poorly - ventilated areas, it may pose some challenges to the valve's performance.

High humidity can potentially affect the electrical components inside the valve. Moisture might gradually accumulate, leading to issues such as corrosion of metal parts and reduced insulation properties of electrical wires. This could ultimately result in malfunctions or a shortened lifespan of the valve.

To mitigate these risks in a high - humidity environment, it is advisable to take some preventive measures. For example, you can install dehumidifying equipment to keep the humidity within the recommended range. Additionally, ensuring good ventilation around the valve can help dissipate any excess moisture. By following these steps, you can maintain the optimal operating conditions for the3v dc micro solenoid valve 2 way and ensure its reliable performance even in relatively humid settings.
