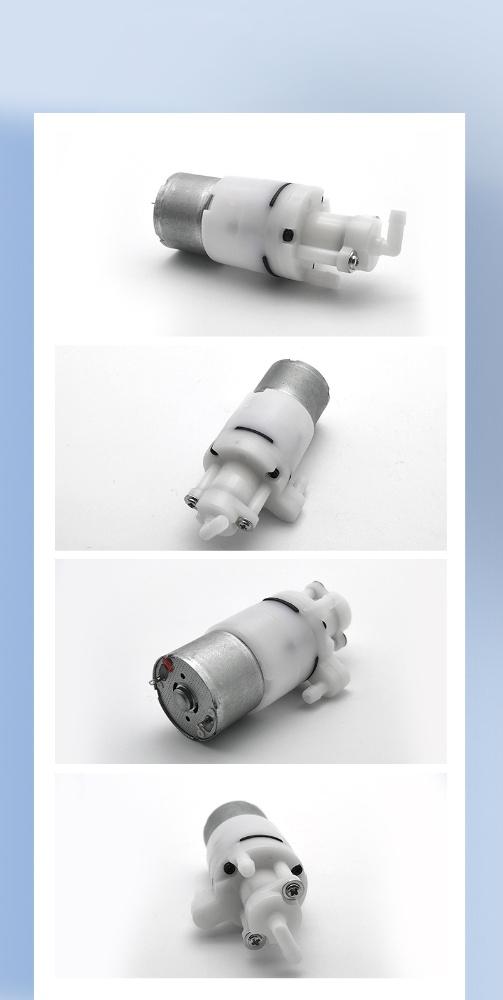

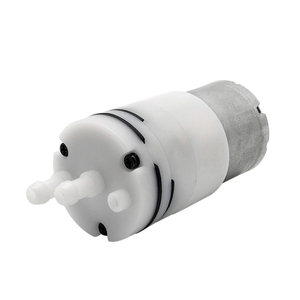

Micro foaming pump for soap dispenser offers a ultra-low voltage DC 3.7V foam pump specifically engineered for touchless soap dispensers and sanitizer systems. This compact 71.5mm-diameter pump generates rich, consistent foam with 0.05-0.2MPa output pressure while consuming only 1.2W power, mini pump for foam air driven ideal for home appliances, medical products. Certified with CE/ROHS, our brushless or carbon brush motor design ensures maintenance-free service even with high-frequency activation. customize the parameters and specifications of the 310 foaming pump.
Micro foaming pump for soap dispenser with unique feature : Built - in foamer. This kind of mini foaming pump stands out with this exclusive design. It is Versatile and multi - functional, 310 foaming pump applicable not only in common home appliances but also in medical, beauty, massage. It's a one - stop solution for various foaming needs. With a proven lifespan of over 100,000 cycles (ON 2s, OFF 2s), 3.7V 6V micro foaming pump ensures long - term reliable performance. Operating at a low noise level of ≤65db (30cm away), it provides a quiet operation experience while maintaining a water flow of 30 - 100 mLPM and air flow of 1.5 - 3.0 LPM. Sample can be made as your requirement.
The mini foam pump rated voltage can be 3V to 24V DC, terminal with the red dot is the positive electrode. The pump head is designed for easy disassembly, easy cleaning, and maintenance.
Brushless Motor: Offers up to 10,00 hours of continuous operation.
Carbon Brush Motor: Offers up to 500 hours of continuous operation
Unique Design: Pump with built-in foaming function
Material Compatibility: Use of corrosion-resistant materials like PTFE diaphragms and stainless steel components.
310 Mini foam pumps from Shenzhen Pincheng Motor, are electronic mechanical devices designed to convert liquid solutions into uniform micro foam through a controlled aeration process. These compact systems integrate fluid dynamics and precision engineering to achieve reliable foam generation for hygiene, medical, and industrial applications.
Stage 1: Liquid Intake
The 3.7V micro foam pump draws liquid (soap, sanitizer, cosmetic base) from the reservoir through an inlet tube using negative pressure generated by the impeller's rotation. A pre-filter removes particulates >100μm.
Stage 2: Aeration
Simultaneously, air is introduced via:
a) Passive intake: Atmospheric air enters through dedicated ports
b) Active injection: Motor-driven micro-compressor
The liquid-air mixture reaches optimal 1:5 to 1:15 ratio controlled by flow restrictors.
Stage 3: Foam Generation
The turbulent mixture enters the foaming chamber containing layered mesh screens. As the solution passes through successive mesh layers (usually 3-7 stages):
Large bubbles are sheared into micro bubbles (50-200μm diameter)
Surface-active agents (surfactants) in the liquid stabilize the foam structure
Output consistency reaches 85-95% foam quality (liquid-to-foam ratio)
Stage 4: Delivery
Foam is expelled through an angled nozzle, with flow rate determined by:
Motor RPM (PWM-controlled in smart pumps)
Nozzle orifice diameter (typically 1-5mm)
Back pressure regulation (spring-loaded valves)
Industry Applications
Hygiene: Touchless soap/sanitizer dispensers (0.1-0.3mL/activation)
Beauty: Foam cleansers/mousse applicators (viscosity up to 2,000cP)
Food Service: Dishwasher pre-rinse foam (NSF-certified models)
Industrial: Precision adhesive foaming (2-component systems)
Maintenance Advantages
The brushless motor architecture eliminates carbon brush wear, while PTFE seals resist chemical corrosion. Typical MTBF exceeds 15,00 hours (>5 million cycles) with <0.5% foam consistency deviation.
For technical drawings or performance curves specific to Pincheng's Micro foaming pump for soap dispenser , please contact our sales team.
