2 Way Mini Solenoid Valve 12v

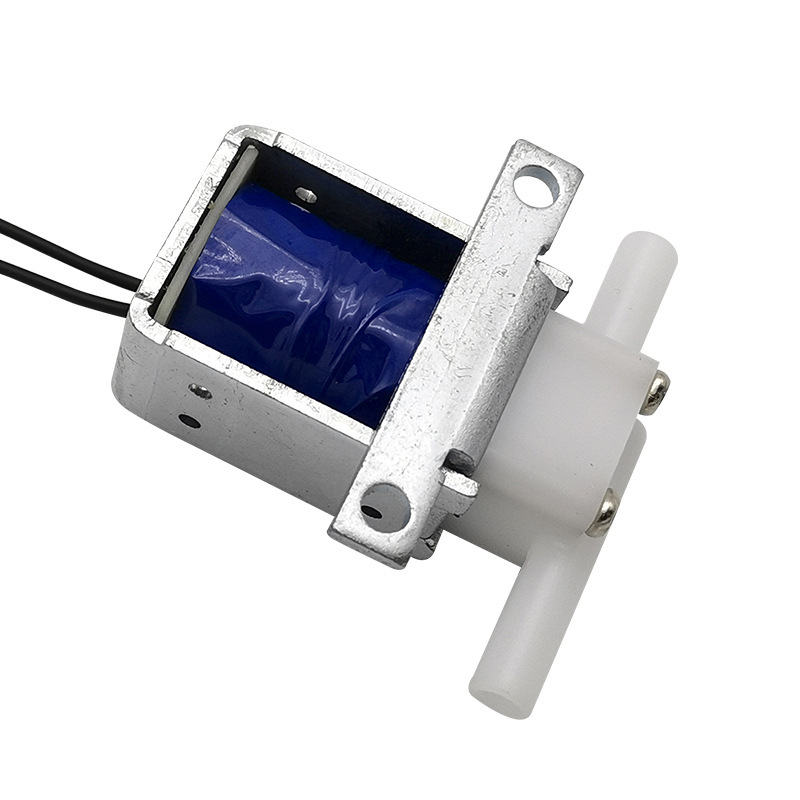

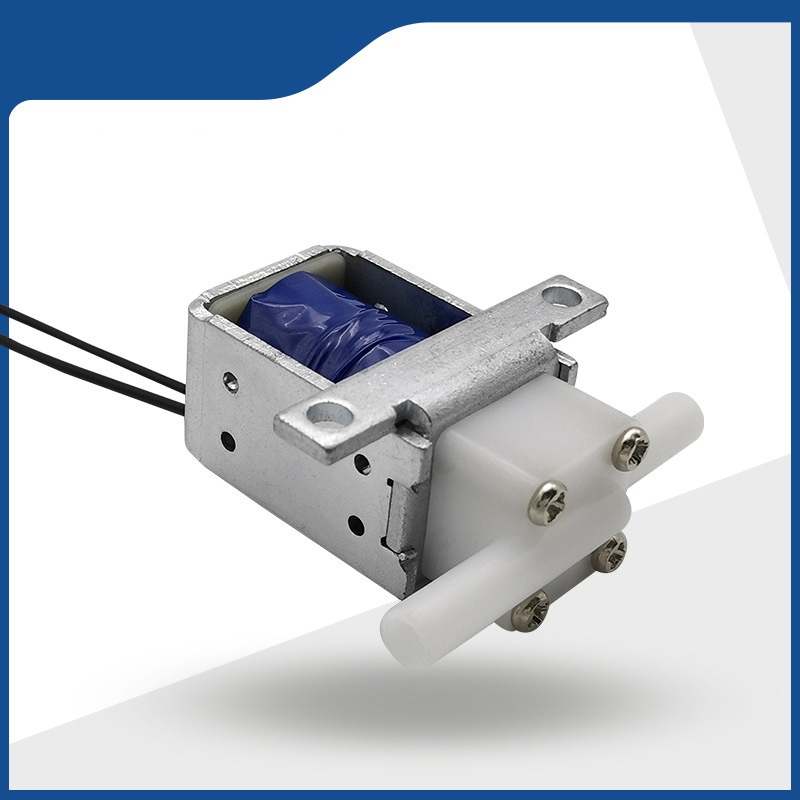

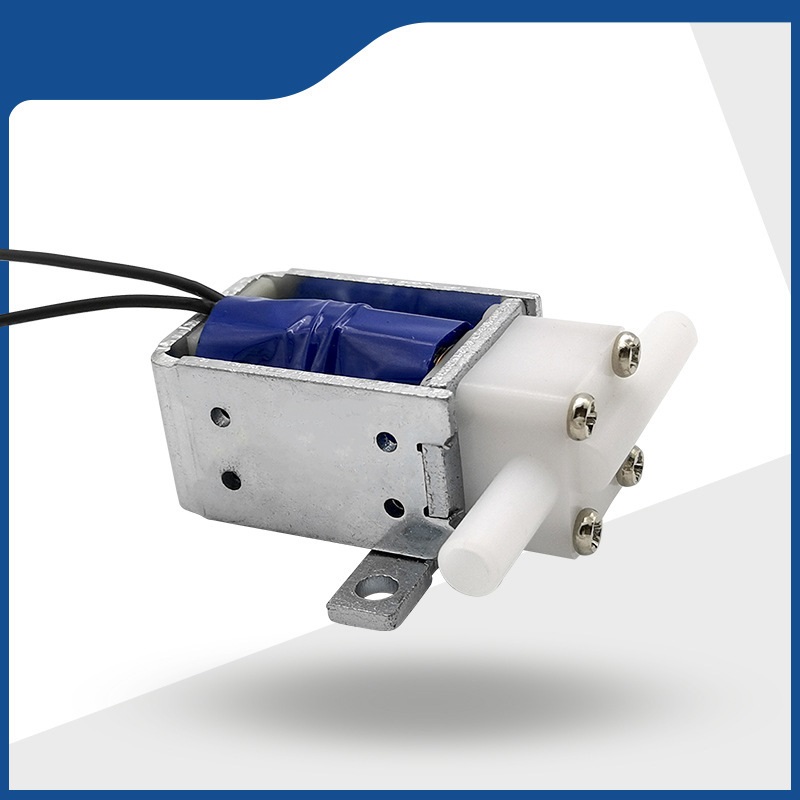

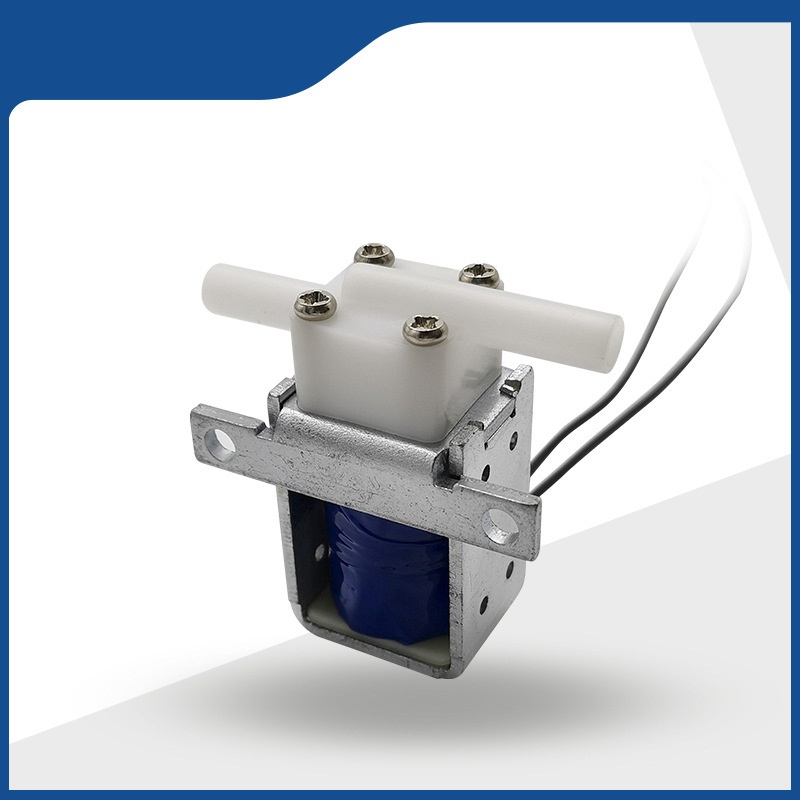

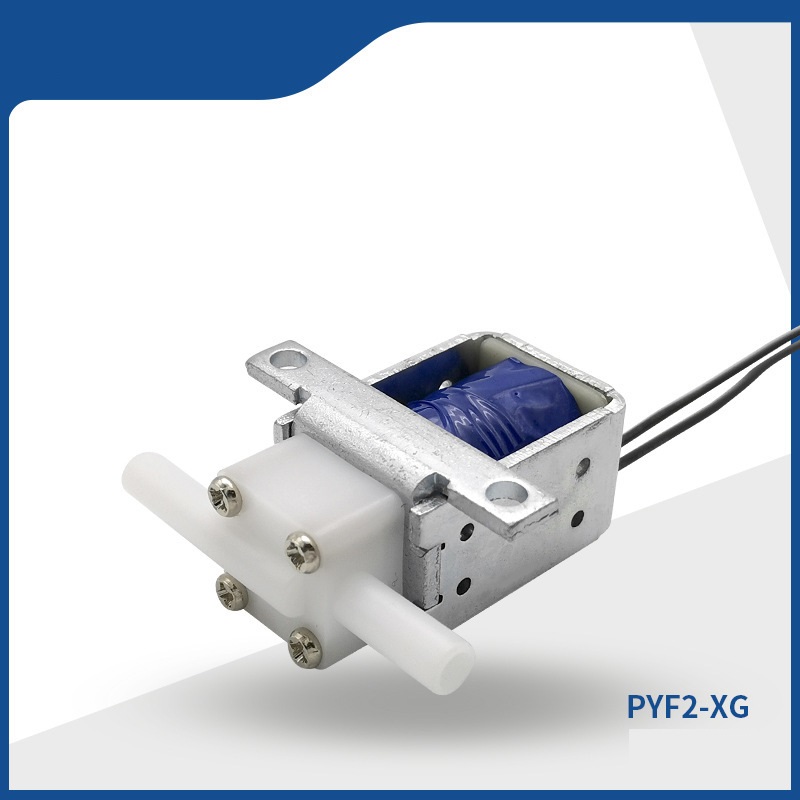

The PYF2 - XG 2 way mini solenoid valve 12V is a sophisticated solution for fluid control, especially notable for its 12V operation. Weighing approximately 100g, its compact design makes it a prime choice for various devices where space is a premium.

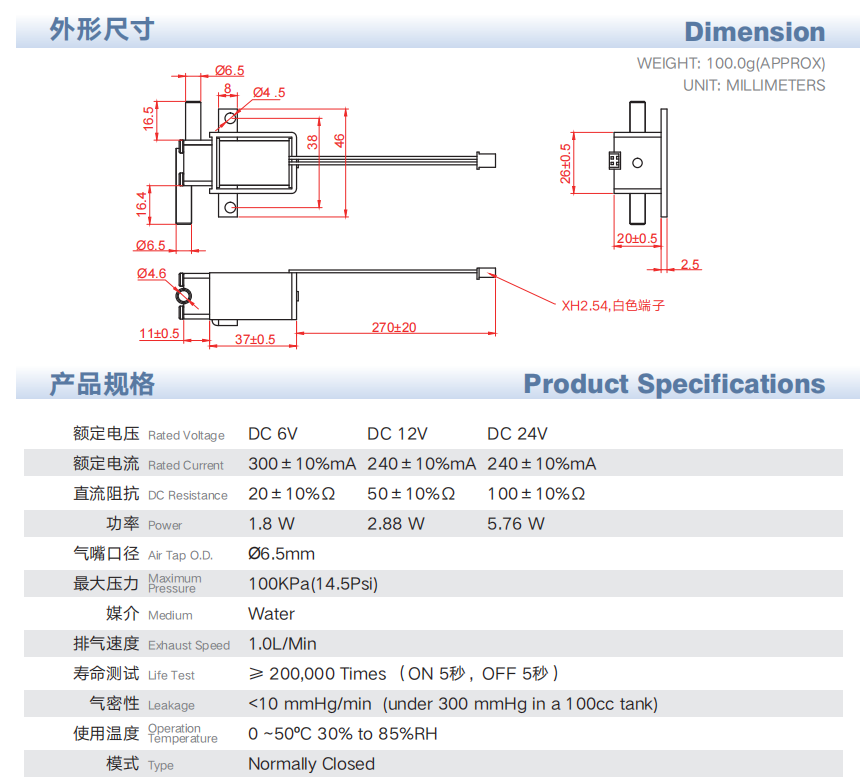

This valve offers a range of rated voltage options, including DC 6V, DC 12V, and DC 24V. At 12V, it operates with a rated current of 240 ± 10mA and a power of 2.88W, ensuring efficient and stable performance. With an air tap O.D. of Ø6.5mm, it can handle a maximum pressure of 100KPa (14.5Psi), making it suitable for handling water in a variety of applications.

Typically used in beauty instruments, water dispensers, and small household appliances, this 2 way mini solenoid valve 12V provides precise control over water flow. Its exhaust speed of 1.0L/Min ensures quick response times, and its excellent durability, with a life test of ≥200,000 times (ON 5s, OFF 5s), guarantees long - term reliability. Operating within standard conditions, This mini solenoid valve water is a reliable and essential component for applications that require accurate water flow regulation, combining compact size, 12V compatibility, and robust performance.

A 2 - way and a 3 - way solenoid valve differ mainly in their functionality and connection configurations:

Functionality

2 - way solenoid valve: It has two ports, typically an inlet and an outlet. Its main function is to open or close the flow path between these two ports. When energized, it allows fluid (such as water or air) to flow from the inlet to the outlet; when de - energized, it stops the flow. For example, in a water dispenser, a 2 - way solenoid valve can be used to control the water supply, simply turning the water on or off.

3 - way solenoid valve: This type has three ports. It can direct the flow of fluid to different paths. There are two common configurations: normally open (NO) and normally closed (NC). In a NO 3 - way valve, when de - energized, fluid flows between two ports, and when energized, the flow is redirected to the third port. In an NC 3 - way valve, the opposite occurs. For instance, in a medical oxygen delivery system, a 3 - way solenoid valve can be used to direct oxygen to different parts or switch between oxygen sources.

Connection and Application

2 - way solenoid valve: Its simple two - port design makes it suitable for applications where basic on - off control of fluid flow is required, like in small - scale plumbing systems or simple automation setups.

3 - way solenoid valve: With its ability to redirect fluid flow, it is more suitable for complex systems that need to manage multiple fluid paths, such as in automotive air - conditioning systems, where it can direct refrigerant flow to different components.
