Mini Solenoid Water Valve

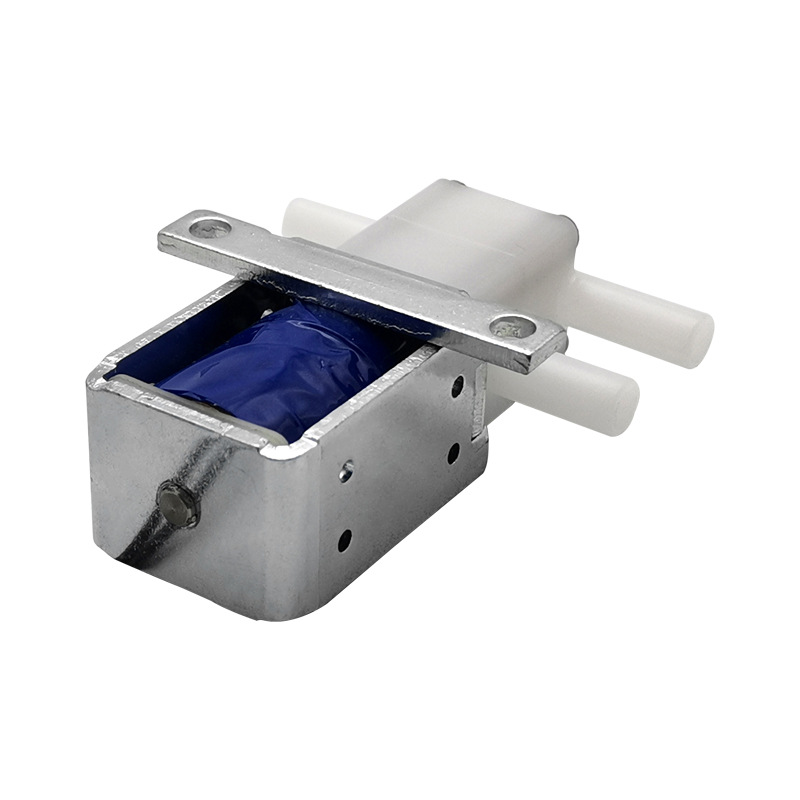

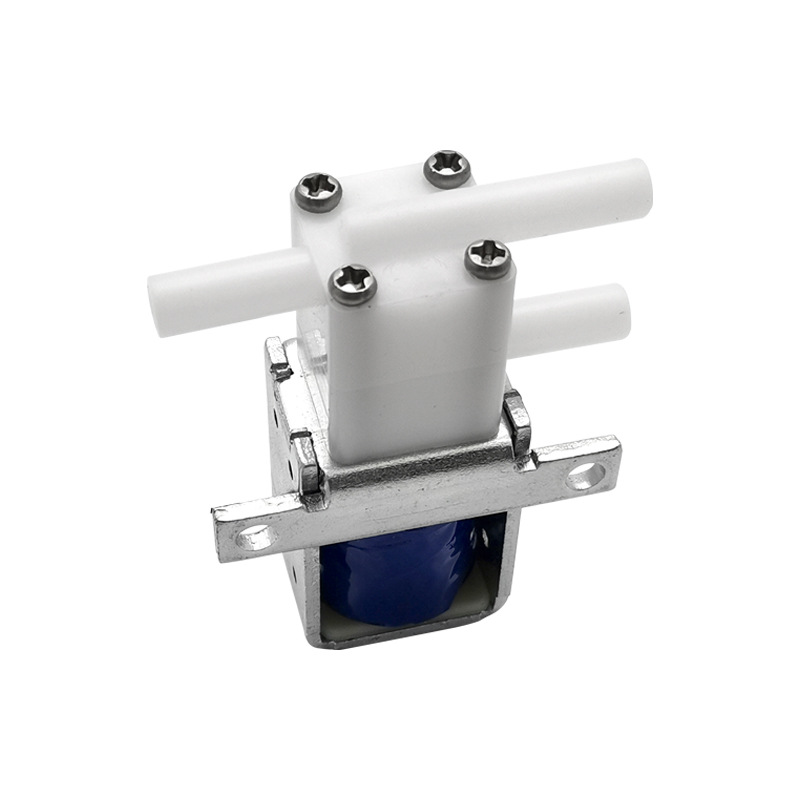

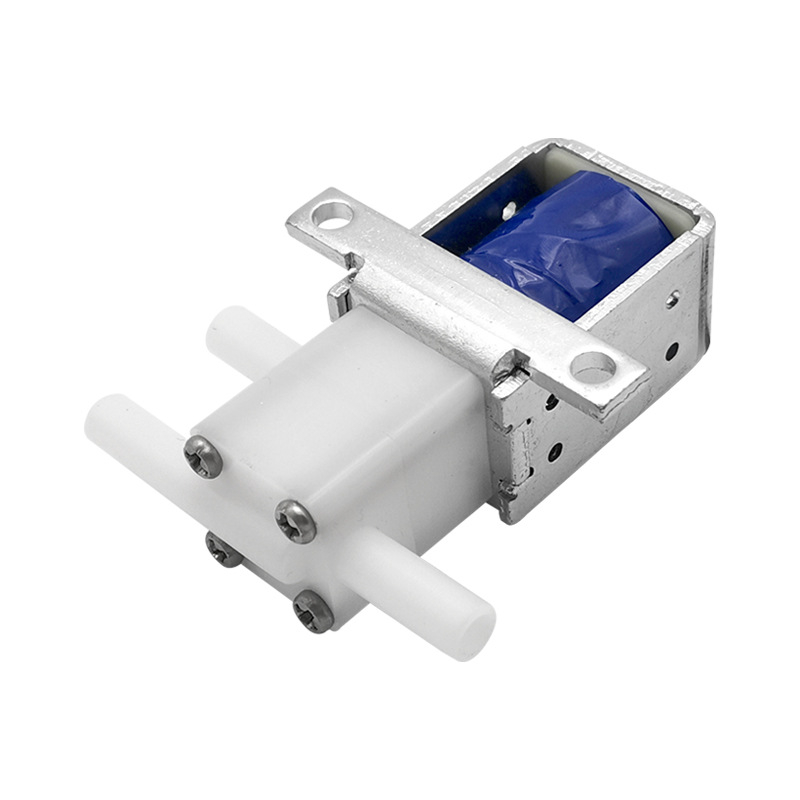

The PYF3 - XG is a high - performing mini solenoid water valve specifically engineered for water - related applications. Weighing approximately 110g, its compact design makes it an ideal fit for a variety of devices where space is at a premium.

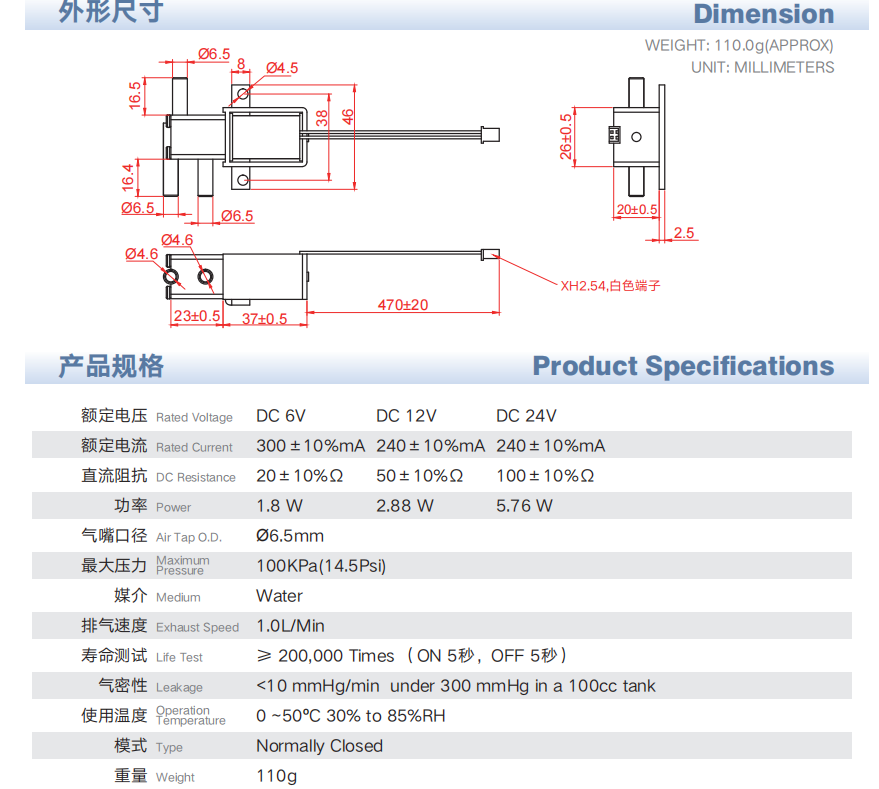

This Normally open mini Solenoid Valve provides a range of rated voltage options such as DC 6V, DC 12V, and DC 24V, catering to different power requirements. With an air tap O.D. of Ø6.5mm, it is capable of handling a maximum pressure of 100KPa (14.5Psi), ensuring stable and reliable water flow control.

Operating in a normally closed mode, it offers precise management of water flow. The valve has an efficient water exhaust speed of 1.0L/Min, which is crucial for applications that demand quick water regulation. 2 way mini solenoid valve 12v is exceptional airtightness, with leakage <10 mmHg/min under 300 mmHg in a 100cc tank, guarantees minimal water loss and maintains system integrity.

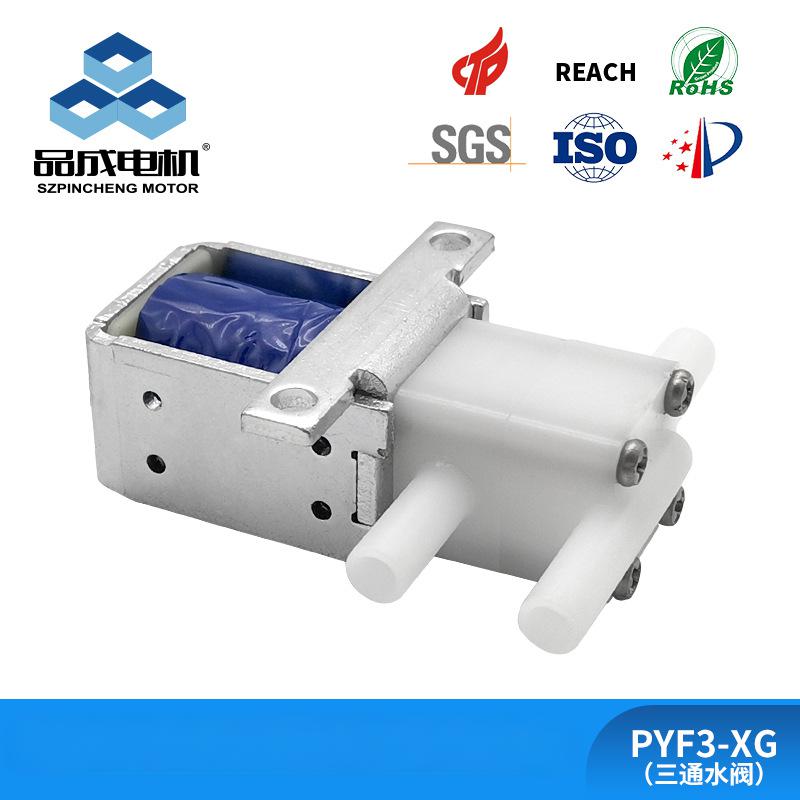

Typically used in home appliances like water dispensers and beauty instruments, the PYF3 - XG mini solenoid water valve undergoes a rigorous life test of ≥200,000 times (ON 5s, OFF 5s), ensuring long - term durability.

Operating within a temperature range of 0 - 50°C and 30% - 85%RH, it can withstand normal environmental conditions, making it a reliable choice for applications that require accurate and consistent water flow control.

When an electrical current is applied to the solenoid coil (corresponding to its rated voltage, such as DC 6V, DC 12V, or DC 24V), it generates a magnetic field. In its normally closed mode, when the coil is de - energized, a spring - loaded plunger blocks the water flow path, preventing water from passing through. This is because the spring exerts a force that keeps the plunger in the closed position, ensuring no leakage under normal circumstances.

Once the solenoid coil is energized, the magnetic field it creates overcomes the force of the spring. This causes the plunger to move, opening the water flow path. As a result, water can then flow through the valve from the inlet to the appropriate outlet port. The valve's structure, including the Ø6.5mm air tap and the internal channels, is designed to manage the water flow smoothly under a maximum pressure of 100KPa (14.5Psi).

The precise control of water flow, along with its reliable switching mechanism, makes the PYF3 - XG suitable for various applications like home appliances and beauty instruments, where accurate water regulation is essential.
