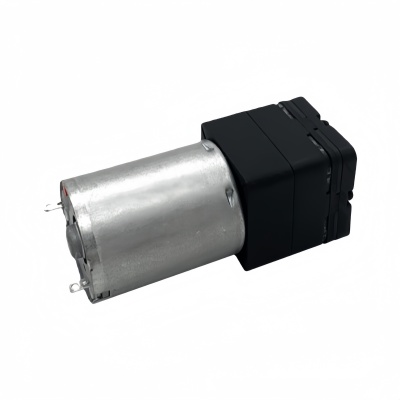

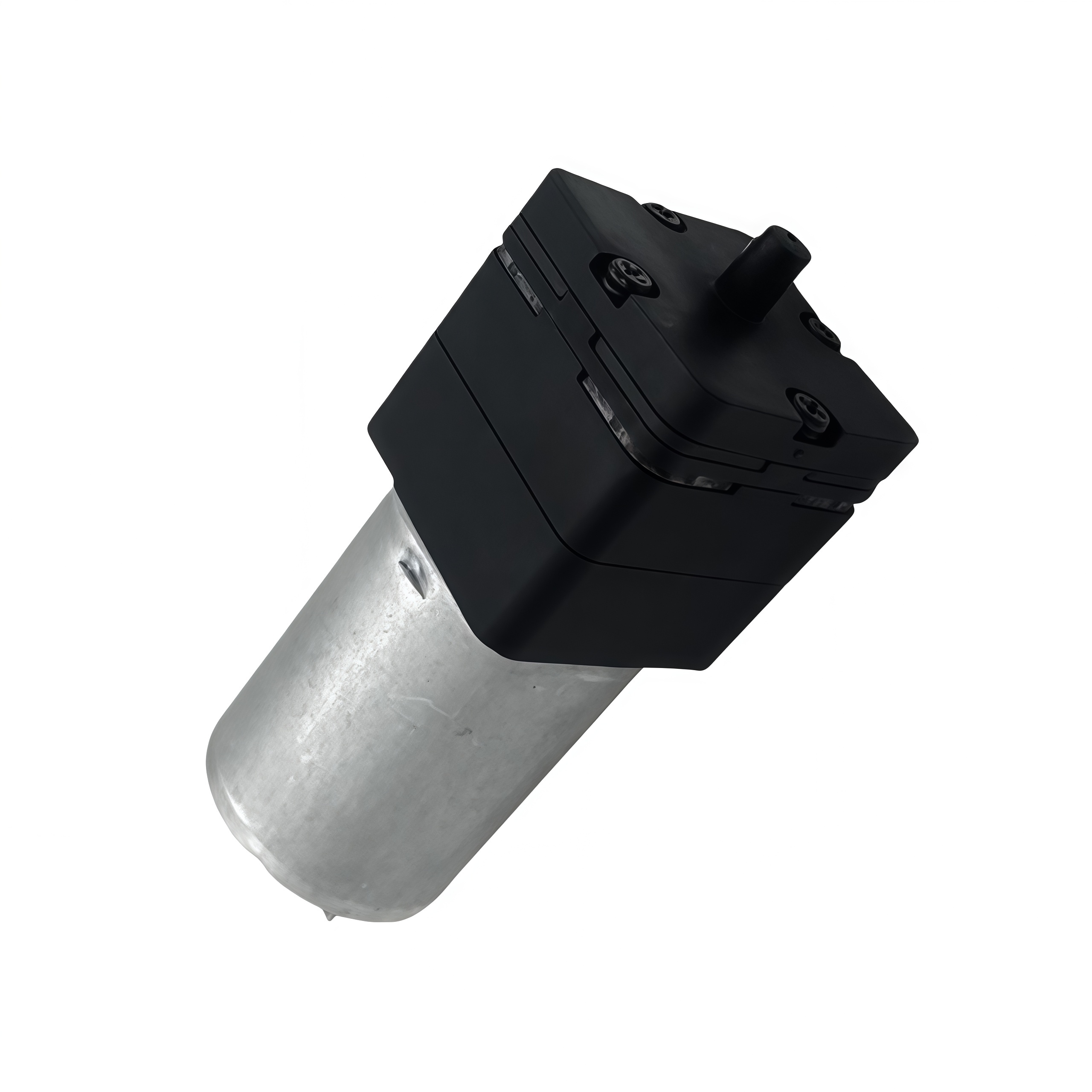

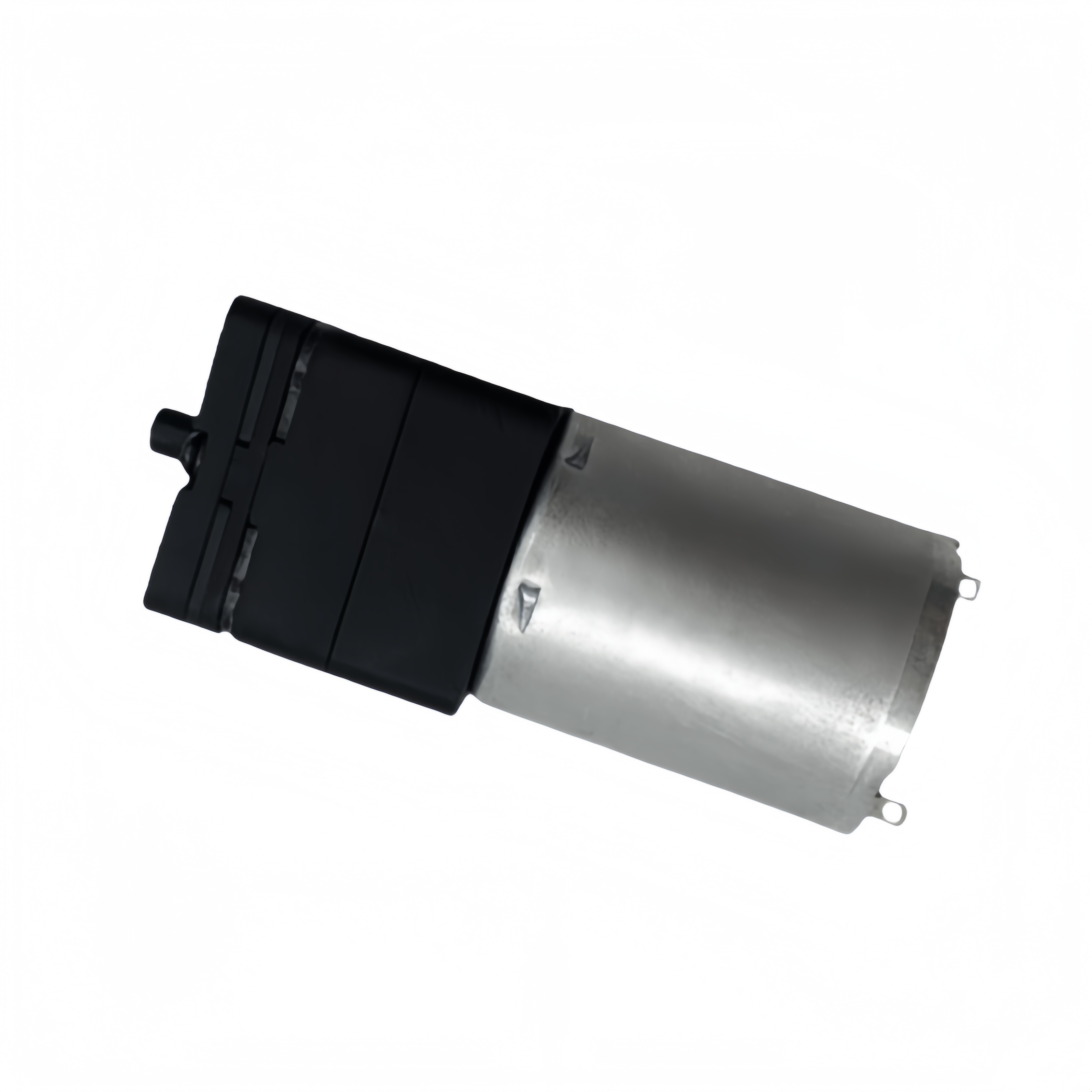

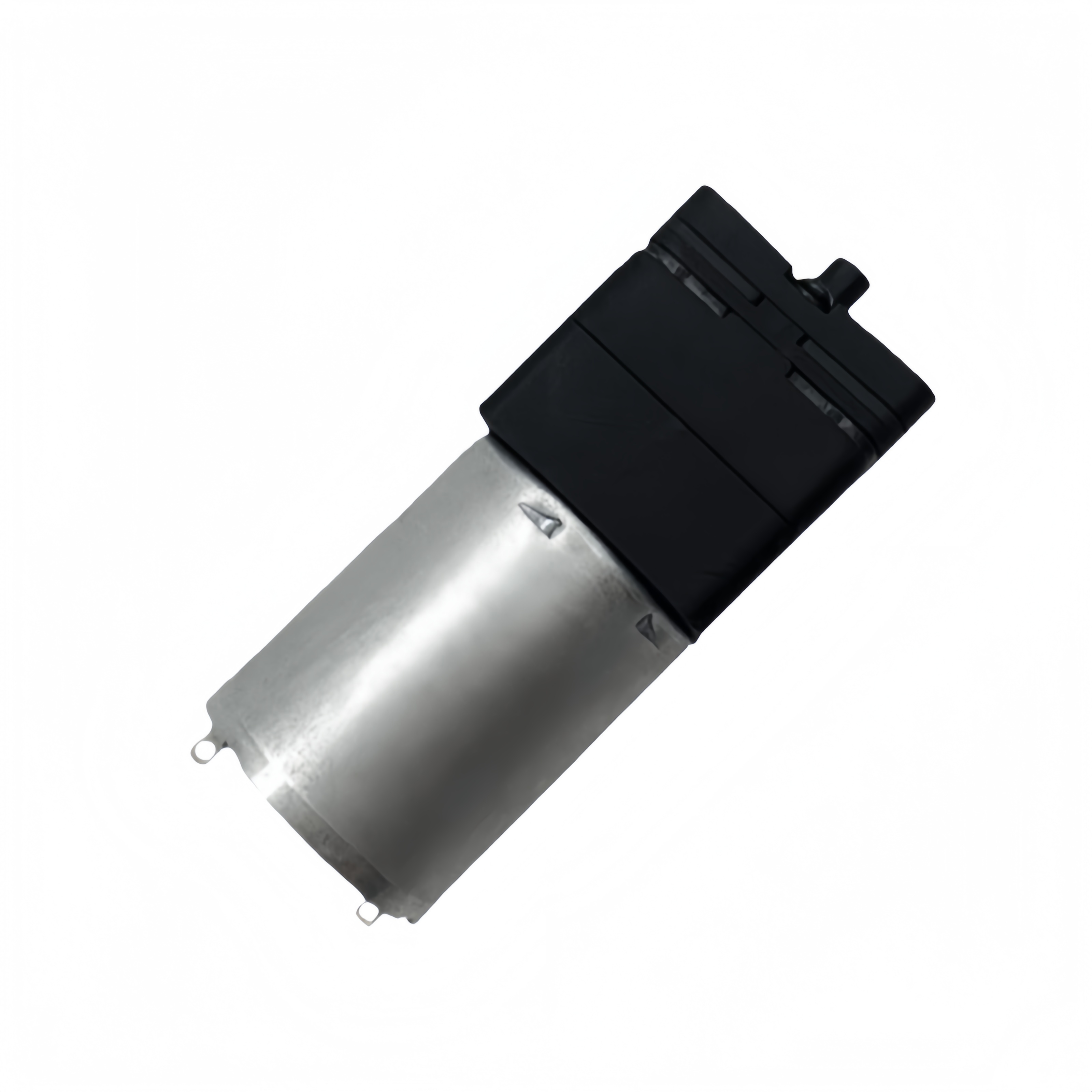

Micro Miniature Air Pump


Availability:

Quantity:

Inquire

Model:
PYP370-XF-1
Brand:
Pincheng
Code:
8414100090

Versatile Power Options: Supports a wide range of DC voltages including 3V, 6V, 9V, 12V, and 24V to fit various global power standards.

High Suction Performance: Delivers a powerful vacuum flow of 1.0-6.5 LPM and a maximum vacuum of $\ge$ 60KPA (450mmHg).

Ultra-Durable Design: Rated for a lifespan of $\ge$ 50,000 cycles, ensuring long-term reliability for end-users.

Silent Operation: Maintains a low noise level of $\le$ 60dB, which is essential for medical and home beauty environments.

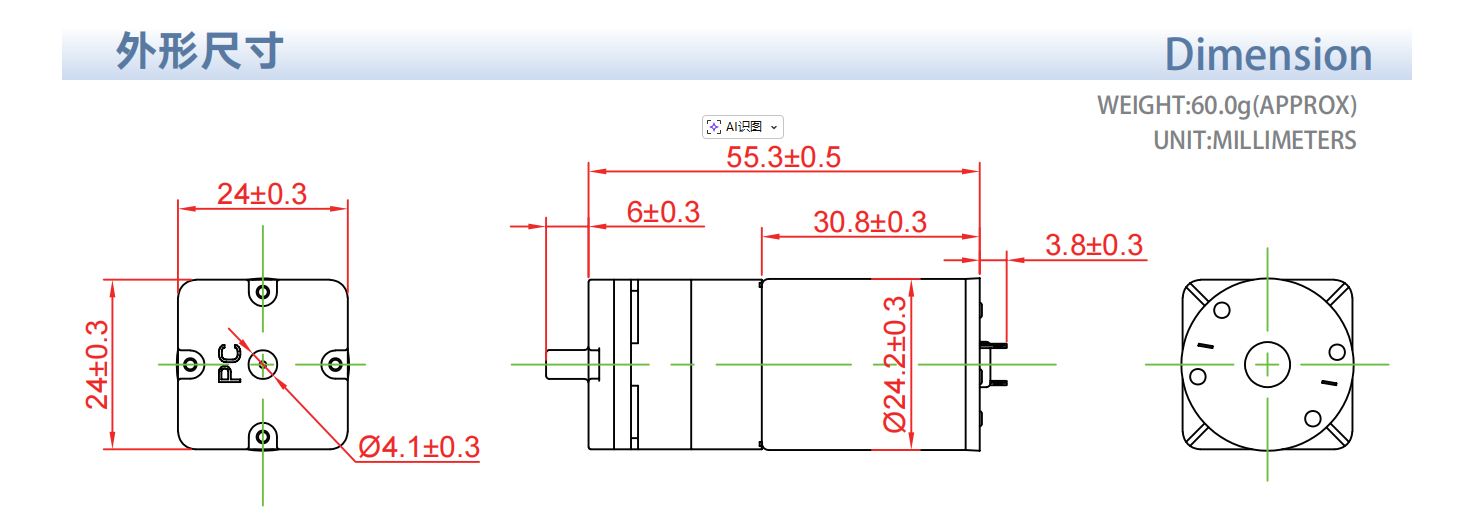

Compact & Lightweight: Weighing only 60g with a small form factor ($55.3 \pm 0.5$ mm length), it is perfect for portable "wearable" technology.

Product Description

In the competitive landscape of medical and consumer electronics, the performance of your internal components defines your brand's quality. This High-Performance Micro Miniature Air Pump is engineered to provide a perfect balance of compact design, powerful suction, and industrial-grade durability.

Technical Excellence & Versatility

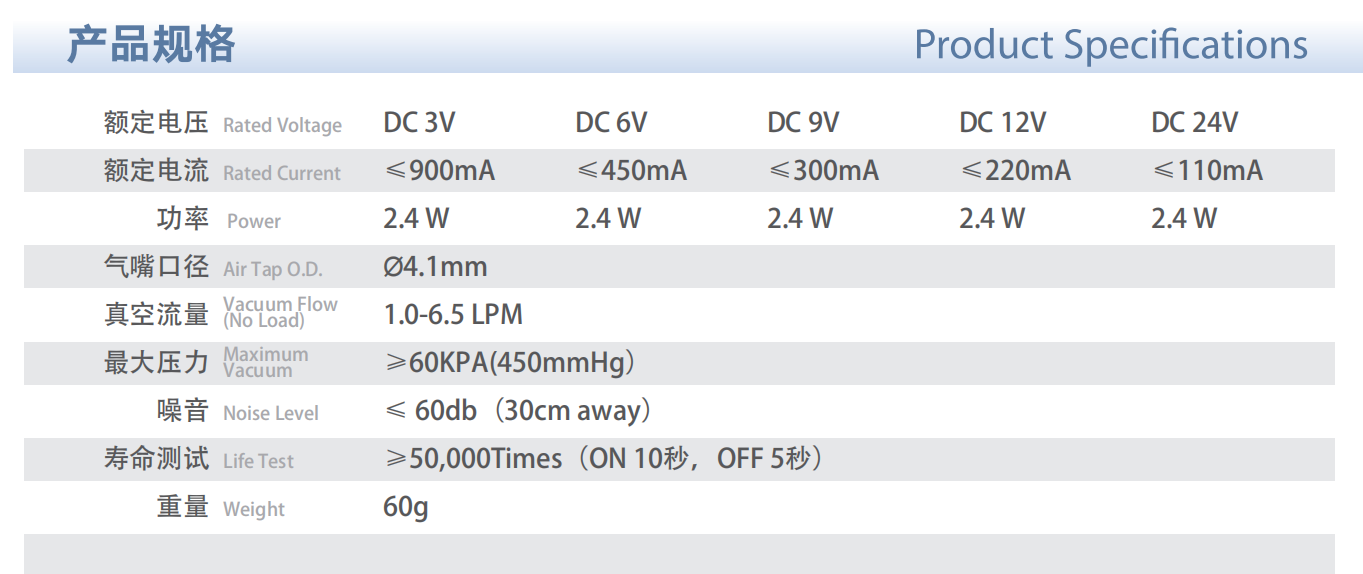

Designed for seamless integration, this pump features a lightweight 60g and a standardized Ø4.1mm air tap, making it ideal for space-constrained devices. It offers an impressive vacuum flow range of 1.0 - 6.5 LPM and achieves a maximum vacuum pressure of ≥60KPA (450mmHg). To ensure compatibility with various power systems, we offer five voltage configurations: DC 3V, 6V, 9V, 12V, and 24V, all maintaining a highly efficient power consumption of just 2.4W.

Engineered for Reliability

We understand that reliability is non-negotiable in medical and professional sectors. Our micro miniature air pumps undergo rigorous life testing, rated for ≥50,000 cycles (based on a standard 10s ON / 5s OFF duty cycle). Furthermore, with a noise rating of ≤60dB at a 30cm distance, this pump ensures a quiet and comfortable user experience, which is critical for bedside medical monitors and home wellness devices.

Wide Range of Applications

This versatile mini pump is the "heart" of numerous modern innovations, including:

Medical Equipment: Blood pressure monitors and portable diagnostic tools.
Beauty & Wellness: Essential oil diffusers, massage chairs, and skin care devices.
Smart Home: Automated dispensing systems and booster technology for appliances.
