Micro Air Compressor Pump


Availability:

Quantity:

Inquire

Shenzhen Pincheng's micro air compressor pump redefines compact pneumatic solutions with 0.5-3L/min airflow at only 60dB noise levels - quieter than a library whisper. Designed for portable CPAP machines and professional skincare tools, this 36g powerhouse delivers 0-35PSI precision pressure control through PWM modulation, consuming merely 2.8W at 3.7-24V DC.

Standout Features:

✓ Medical-grade silicone diaphragms withstand 500,000+ cycles

✓ Instant thermal compensation (-20℃~70℃ operational range)

✓ Singal-port design for simultaneous suction/exhaust functions

Ideal for oxygen concentrators, micro-spray disinfectors, and pneumatic massage guns. CE/FDA/ROHS certified.

Product Specifications

Description

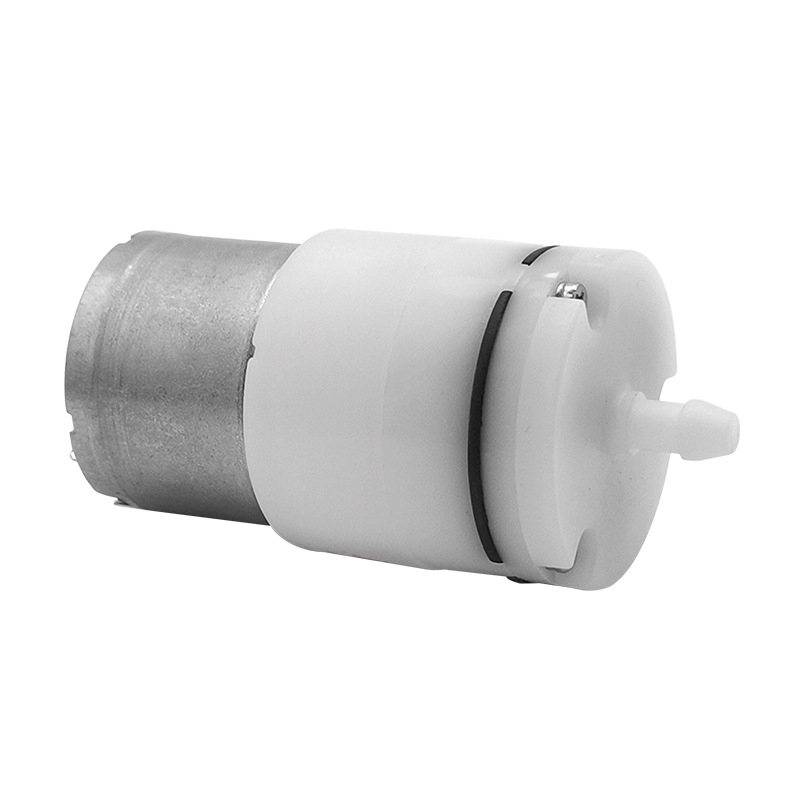

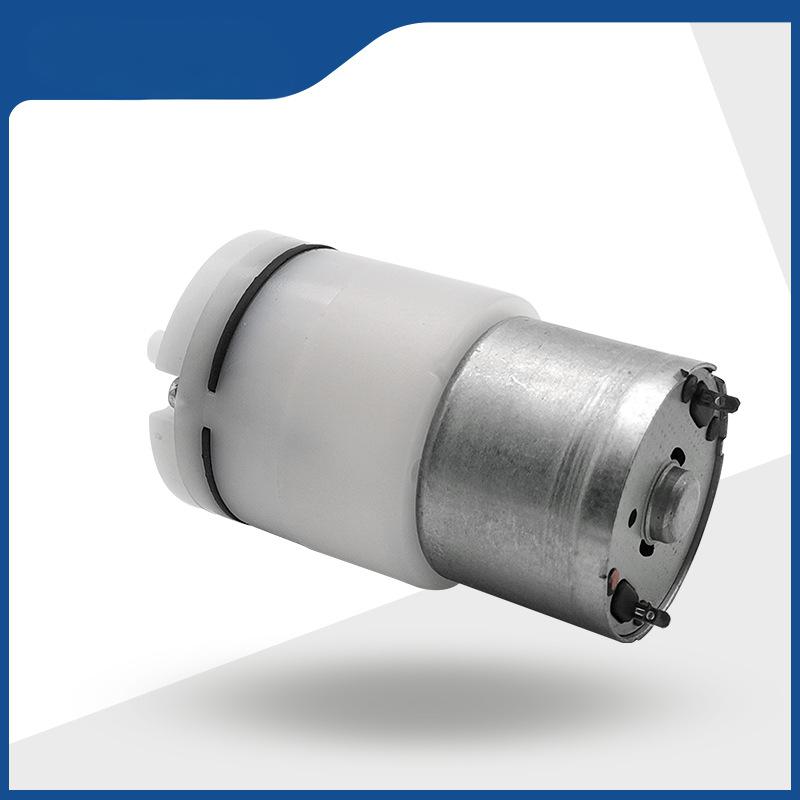

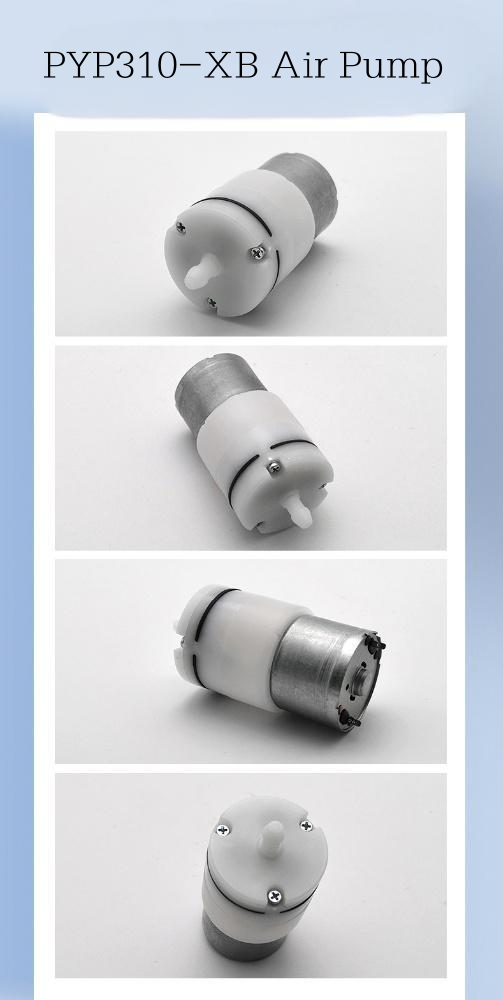

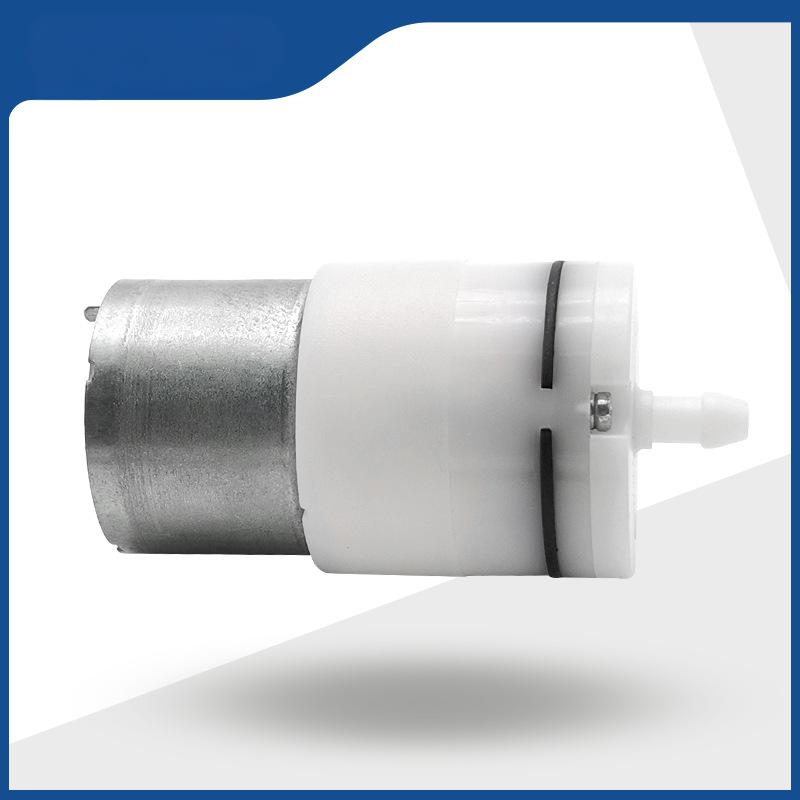

The PYP310 - XB is an outstanding micro air compressor pump, engineered to deliver reliable performance in a compact size. Weighing approximately 36g, it's designed for seamless integration into a wide range of applications.

This pump offers versatile voltage options, including DC 3V, DC 6V, DC 9V, and DC 12V, while maintaining a consistent power output of 2.4W across all ratings. With an air tap O.D. of Ø4.8mm, it provides an air flow ranging from 0.5 - 3.0 LPM and can reach a maximum pressure of ≥400mmHg. This makes it suitable for applications that require precise air pressure control, such as sphygmomanometers, massage devices, and essential oil machines.

The 310 12V DC mini air pump excels in efficiency, inflating a 500cc tank from 0 to 300mmHg in under 10 seconds. It operates quietly, with a noise level of ≤60db measured 30cm away, ensuring a peaceful working environment.

Rigorously tested for durability, it has a lifespan of ≥30,000 times (ON 10s, OFF 5s) and features excellent airtightness, with leakage < 3.0mmHg/min from 300mmHg in a 500cc tank.

Typically applied in home appliances, medical, beauty, and massage products, the 310 Micro Mini Air Pump combines compact design, high performance, and reliability, making it an ideal choice for diverse air - compression needs.

Dimension

12V DC mini air pump mini hand air pump
