Mini Air Vacuum Pump


Availability:

Quantity:

Inquire

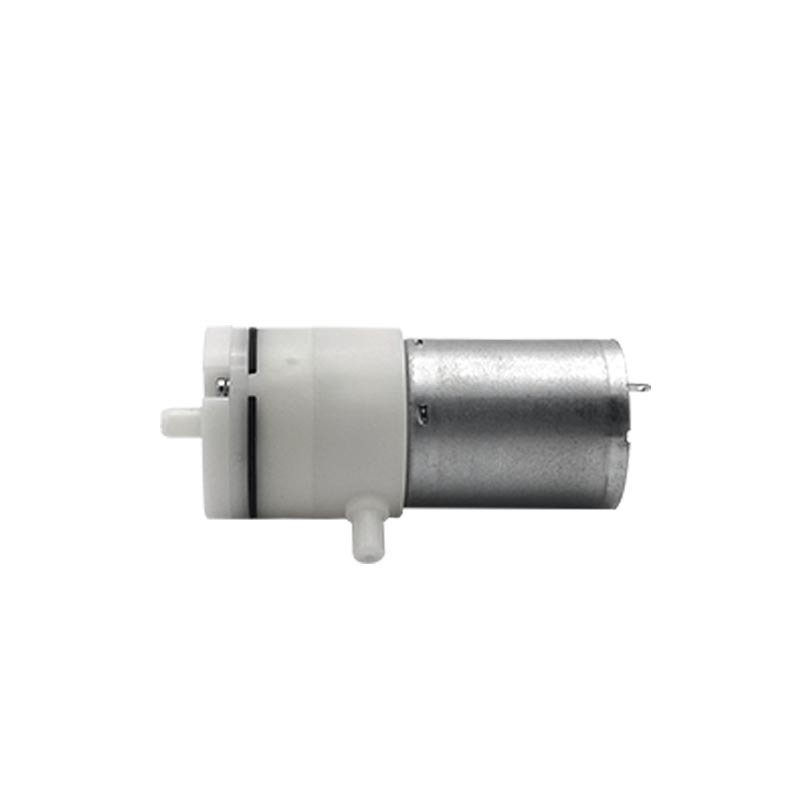

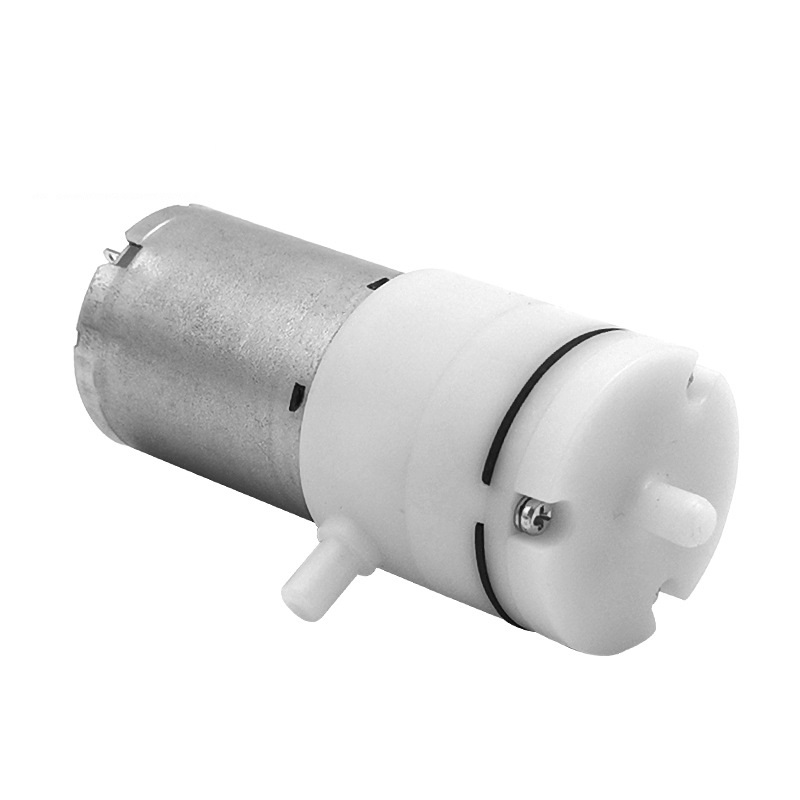

This super-easy-to-use mini air vacuum pump is very suitable for beginners to make inflatable or pneumatic projects. It is basically a DC motor, and the power consumption is only 2.5W when powered by 5V. So you can use the same power supply as other DC motors or servo systems to power it.

When powered on, the pump sucks air from the side port and outputs it from the middle port. If you want to inflate and deflate at the same time, then two pumps are required. The pump flow rate is 1-3.5 LPM (liters per minute), and its maximum suction is -58kpa. This mini vacuum pump 12v can be used in household appliances, medical equipment, vacuum packaging machines, etc.

Product Specifications

Description

Introducing our exceptional mini air vacuum pump, a marvel of engineering designed to meet a wide array of requirements. Weighing a mere 60g, its compact form belies its impressive capabilities.

This pump offers a flexible range of rated voltages, including DC 3V, DC 3.7V, DC 4.5V, DC 6V, and DC 12V, while maintaining a consistent power output of 1.8W. The Ø4.2mm air tap O.D. enables a vacuum flow of 1.0 - 3.5 LPM, reaching a maximum pressure of ≤ - 60 Kpa (- 450mmHg), making it suitable for applications demanding precise vacuum control.

In terms of noise, mini vacuum pump 12v operates unobtrusively with a noise level of ≤65db (30cm away), ensuring a peaceful environment. With a lifespan of ≥500 hours (continuous), it guarantees long - term reliability.

Typically applied in home appliances, medical devices, beauty instruments like guasha and blackhead removal tools, as well as massage products, this 12v dc vacuum pump low pressure is a reliable choice. Its ability to handle different voltage requirements and deliver stable performance makes it an indispensable component for various industries seeking efficient vacuum solutions.

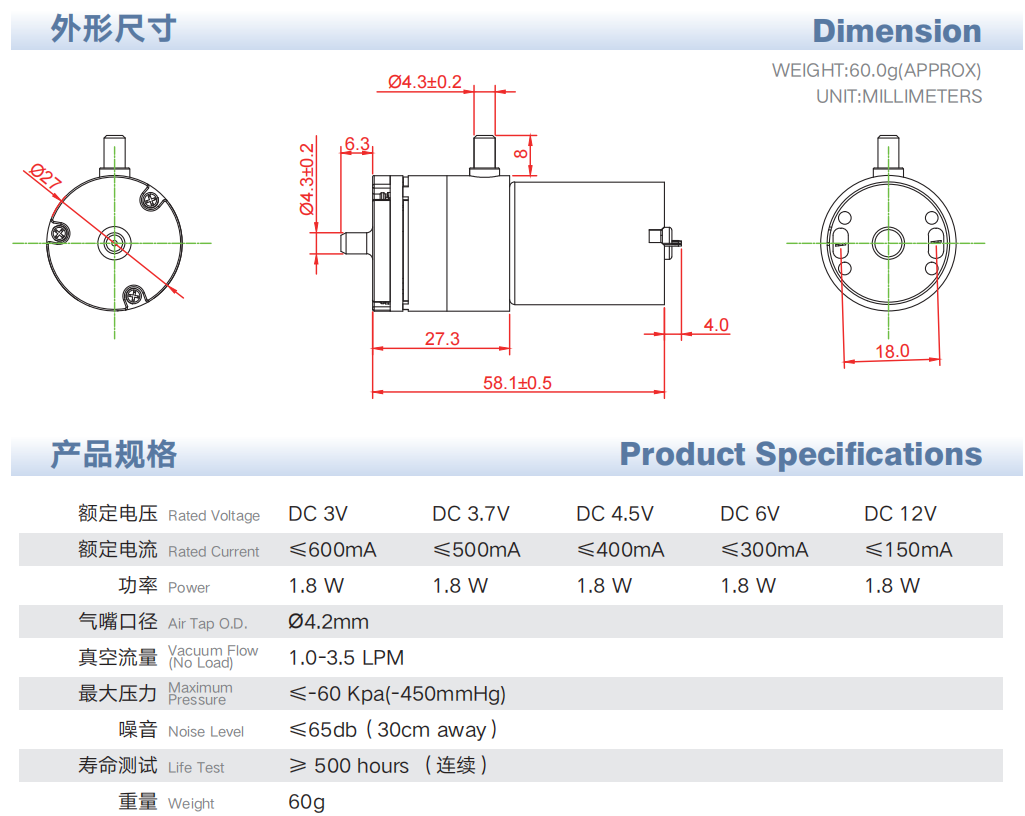

Dimension

Low Noise Vacuum Pump

What are the advantages of vacuum pump?

Compact Size and Portability

Mini air vacuum pumps are small in size and light in weight. This makes them highly portable, allowing for easy transportation and installation in various setups. For example, they can be conveniently integrated into portable medical devices or small - scale laboratory equipment, enabling on - the - go operations.

Versatile Applications

Mini vacuum pump 12v are suitable for a wide range of applications. In the medical field, they can be used in devices like suction pumps for surgical procedures or in respiratory equipment. In the beauty industry, they find use in facial cleansing devices. Additionally, they are applied in home appliances such as vacuum - sealing food containers, and in industrial settings for tasks like component drying and vacuum packaging.

Energy - efficient Operation

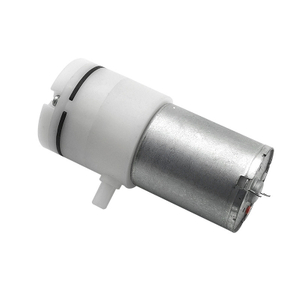

Many High Pressure Vacuum Diaphragm Pump are designed to operate with relatively low power consumption while still delivering sufficient performance. They can achieve the required vacuum levels efficiently, which not only helps in reducing energy costs but also makes them suitable for battery - powered applications where power supply may be limited.

Quiet and Stable Performance

These pumps often operate quietly, which is a significant advantage, especially in noise - sensitive environments like hospitals, beauty salons, or home settings. Moreover, they are engineered to provide stable vacuum performance, ensuring consistent operation for the applications they serve. This stability is crucial for maintaining the accuracy and reliability of devices that rely on them.
