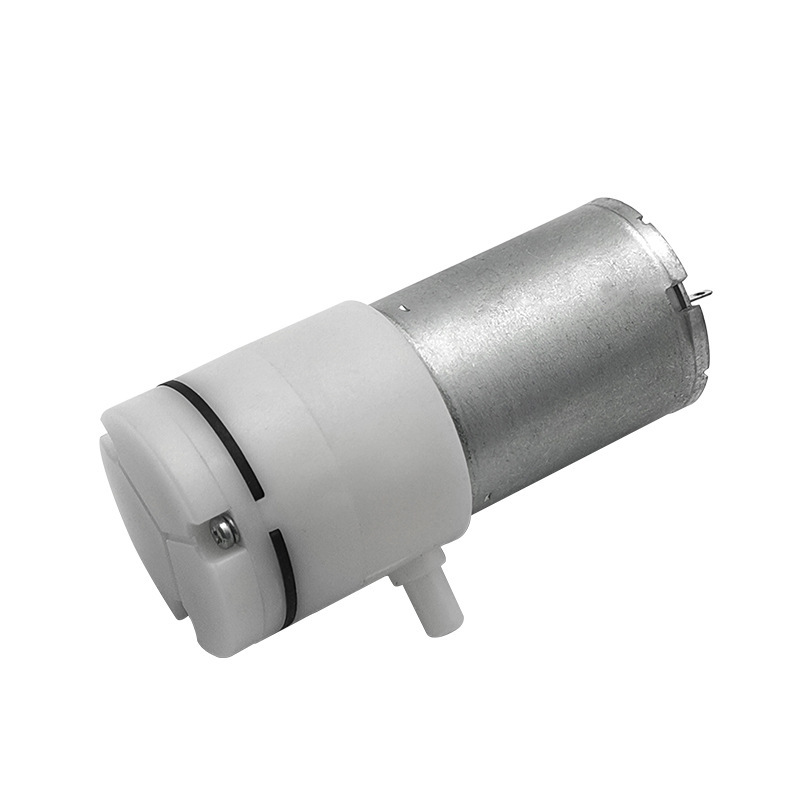

The 370 Mini electric vacuum pump is a compact, high - performance solution engineered to deliver reliable negative pressure in medical, industrial, and consumer applications. Designed with advanced diaphragm technology, this pump combines efficiency, quiet operation, and durability to meet the demands of modern devices.

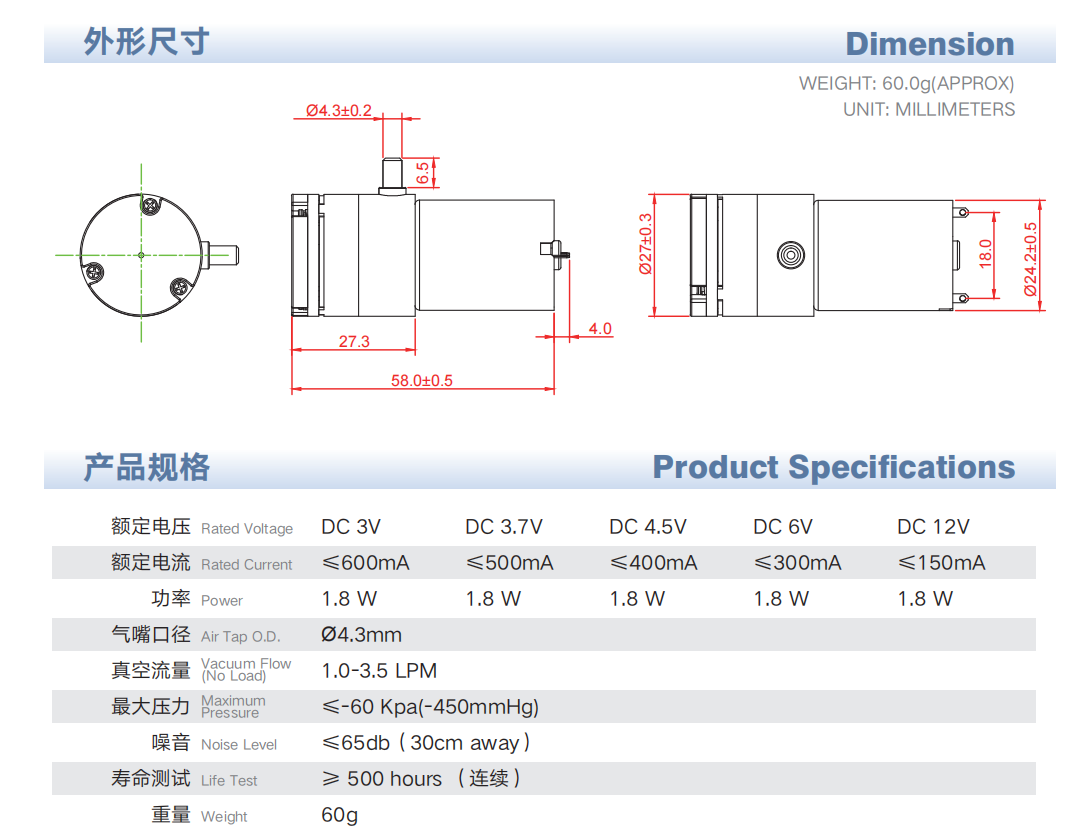

Powerful Vacuum Performance: Generates a maximum vacuum pressure of -60 kPa with a flow rate of 2-3.5 LPM, ensuring efficient air extraction for tasks like fluid sampling or airtight sealing.
Versatile Voltage Compatibility: Operates at DC 3V–12V (model - dependent), making it ideal for battery - powered portable devices or fixed installations.
Whisper - Quiet Operation: Runs at ≤55 dB (30 cm away), suitable for noise - sensitive environments such as hospitals, laboratories, or home healthcare setups.
Robust Construction: Features a corrosion - resistant ABS housing and wear - resistant silicone diaphragms, ensuring a lifespan of ≥500h-1500h cycles (ON 10s, OFF 5s).
Compact Design: Weighs only 60g with a sleek profile, enabling seamless integration into handheld devices or compact systems.
1. Customizable Solutions: Offers adjustable suction levels via PWM control or voltage regulation, tailoring performance to specific needs.
2. Energy Efficiency: Low power consumption extends battery life in portable devices, making it suitable for remote or on - the - go use.
Hassle - Free Integration: Standardized ports and mounting holes simplify installation in OEM designs, reducing development time and costs.
When choosing a mini electric vacuum pump to suit your needs, several key factors should be considered:
Performance Requirements
Vacuum Level: Determine the required vacuum degree for your application. For example, in semiconductor manufacturing or high - precision scientific experiments, a mini electric vacuum pump with a high - vacuum capability is essential. On the other hand, for common home or laboratory tasks like filtering or simple air extraction, a lower - vacuum - rated pump may suffice.
Flow Rate: Consider the volume of gas the pump needs to move per unit time. If you need to quickly evacuate a chamber or transfer a large amount of gas, a pump with a higher flow rate is necessary. In contrast, for applications where a slow and steady gas removal is enough, a lower - flow - rate pump can work well.
Power and Voltage
Power Consumption: Evaluate the power requirements of the pump. A lower - power - consuming mini electric vacuum pump is not only more energy - efficient but also suitable for battery - powered or low - power - supply applications.
Voltage Compatibility: Ensure the mini vacuum pump 12v operating voltage matches your available power source. Whether it's DC or AC, and the specific voltage levels (such as DC 3V, 6V, or AC 110V, 220V), need to align with your setup.
Size and Portability
Physical Dimensions: If space is limited, opt for a compact mini air vacuum pump. Its small size allows for easy integration into tight spaces, such as in portable medical devices or small - scale laboratory equipment.
Weight: For applications that require portability, a lightweight pump is preferable. It can be easily moved around or carried in field - work scenarios.
Noise and Durability
Noise Level: In noise - sensitive environments like hospitals or home offices, a quiet - operating pump is crucial. Check the noise specifications to ensure it won't cause disruptions.
Durability and Lifespan: Look for a pump with a long lifespan and good build quality. A durable Low Noise Vacuum Pump can withstand continuous use and harsh operating conditions, saving you from frequent replacements and maintenance costs.
