12V DC Mini Air Pump

The 130 12V DC mini air pump is high - performance solution engineered for precision applications in breast pumps and beauty devices. Designed to deliver consistent airflow with minimal noise, this pump combines durability and efficiency for critical healthcare and personal care functions.

12V DC Operation: Ideal for portable, battery - powered devices, ensuring safety and energy efficiency.

Compact Design: Measuring just 5.35mm, it integrates seamlessly into handheld or desktop units.

Quiet Performance: Operates at ≤50 dB, minimizing disruption during use.

High Flow Rate: Generates 0.5 - 2 L/min of airflow, suitable for gentle suction in breast pumps or pneumatic massage in beauty tools.

Longevity: Tested for ≥200,000 cycles, ensuring reliability in continuous - use applications.

Breast Pumps: Provides consistent, adjustable suction for comfortable milk expression.

Beauty Devices: Powers pneumatic massage, facial cleansing, or lymphatic drainage tools.

Medical Equipment: Supports oxygen concentrators, nebulizers, or respiratory aids.

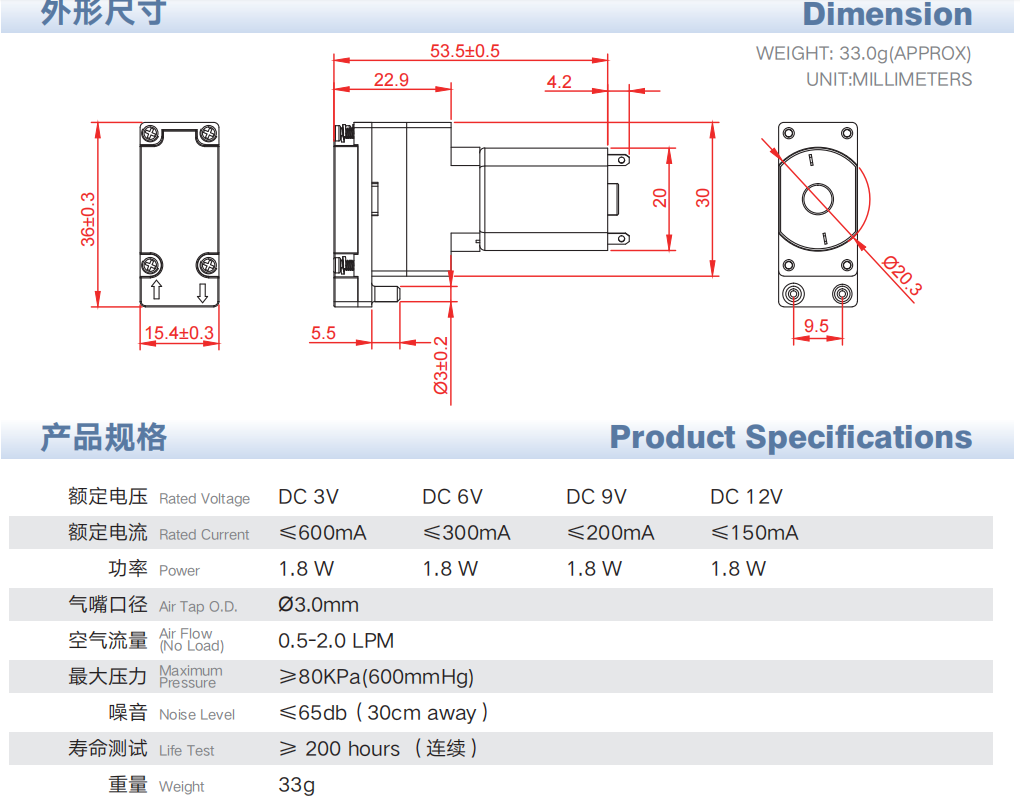

Technical Specifications:

Voltage: 12V DC (range: 3.7 - 12V).

Current: ≤150mA at 12V.

Pressure: Max. 80 kPa (adjustable via PWM control).

Material: Food - grade ABS housing and silicone diaphragms for safety and hygiene.

Certifications: CE, RoHS compliant, ensuring global market compatibility.

Whether powering a hospital - grade breast pump or a premium facial massage device, the 130 12V DC mini air pump delivers the reliability and precision required for sensitive healthcare and beauty applications. Its compact size and 12V DC operation make it the ideal choice for OEMs seeking to optimize device performance while prioritizing user comfort.

The noise level of the 12V DC mini air pump is generally ≤60db at a distance of 30cm.

This low - noise characteristic is achieved through multiple means. Firstly, in terms of mechanical design, high - quality materials and precise manufacturing processes are adopted to reduce the vibration and friction of components during operation, thereby minimizing mechanical vibration noise. Secondly, in terms of air - flow design, the internal structure of the pump is optimized to make the air - flow path more smooth, reducing the noise generated by air turbulence.

However, it should be noted that the actual noise level may be affected by factors such as installation methods, operating environment, and load conditions. If mini air pump 12v is not installed properly or lacks vibration - isolation measures, more noise may be transmitted to the surrounding environment. In addition, continuous operation under high - load conditions for a long time may also cause an increase in noise.
