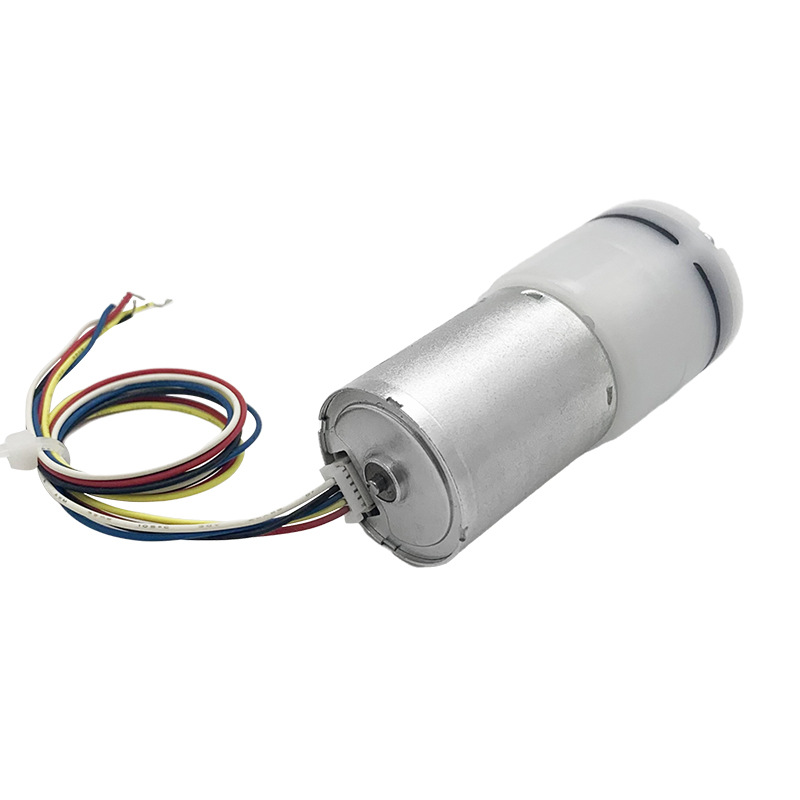

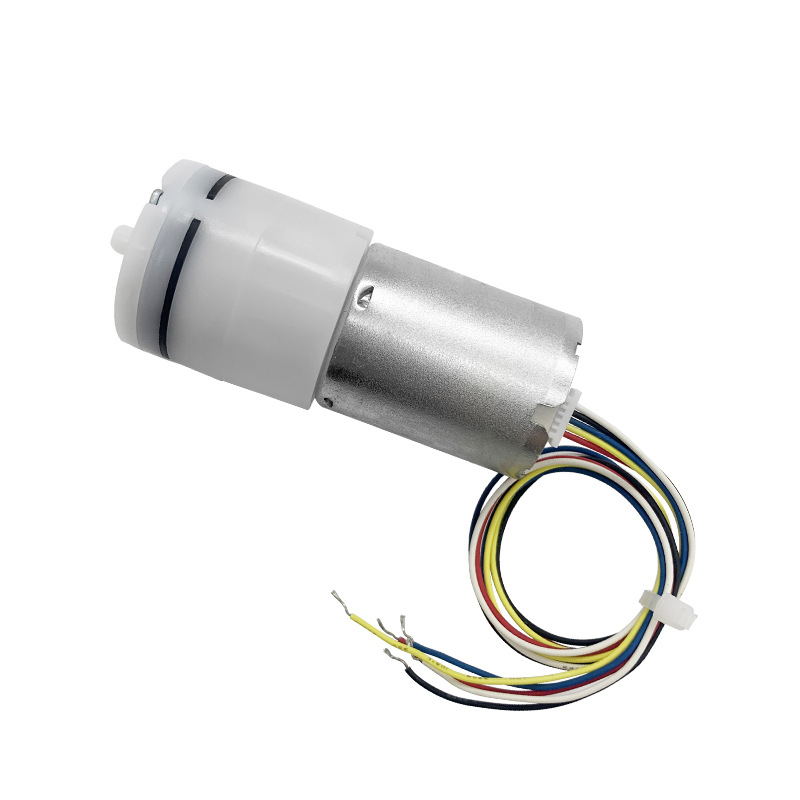

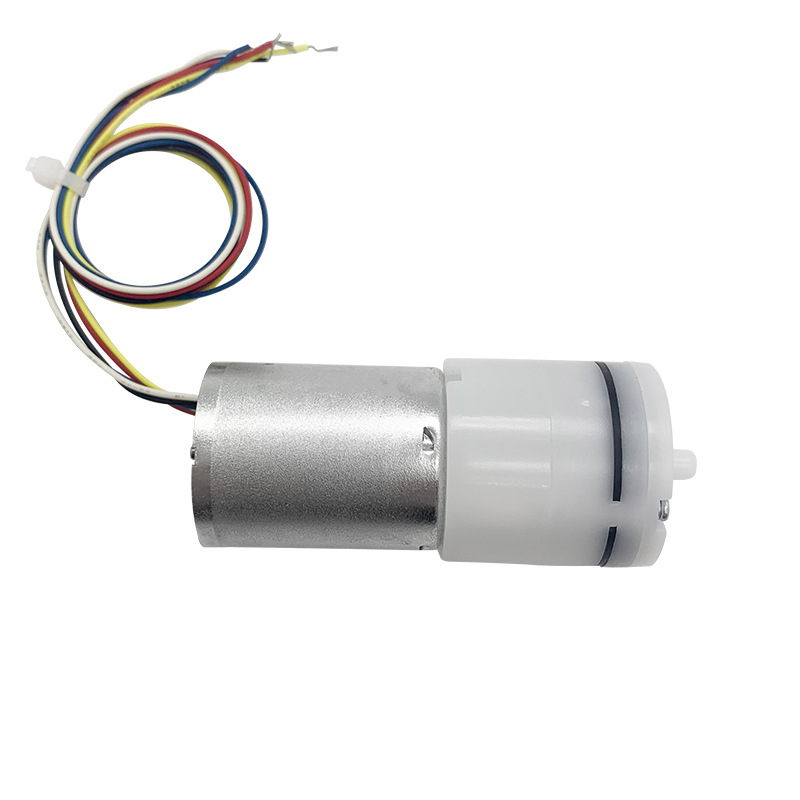

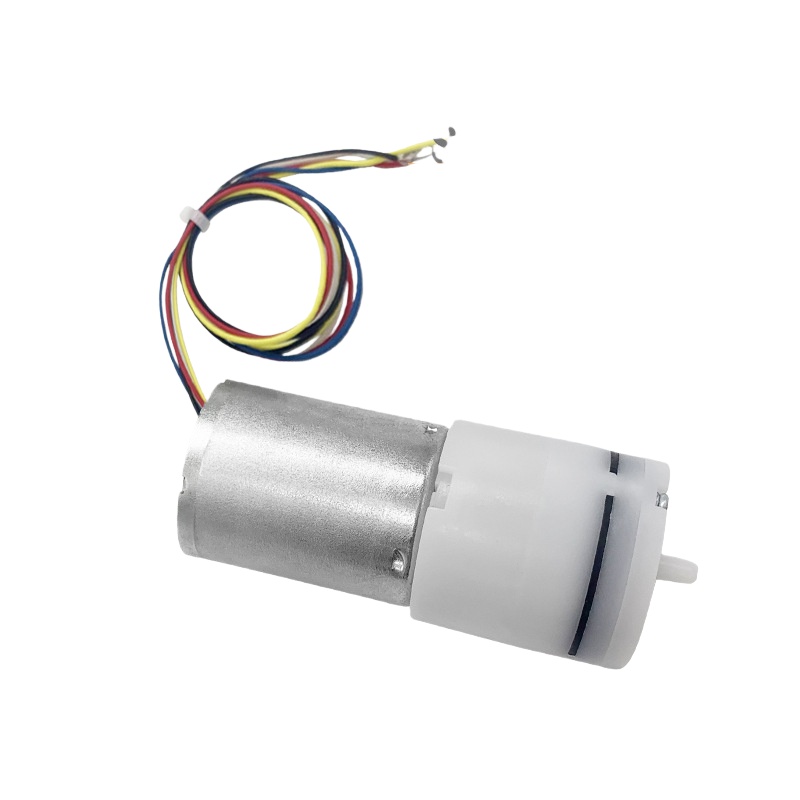

PYP370 BLDC Mini air pump
Pincheng
As the medical and beauty industries shift toward more portable and durable designs, finding a reliable BLDC micro diaphragm air pump supplier is essential for product success.
The 370 BLDC micro diaphragm air pump series represents a significant leap forward in pneumatic technology, replacing traditional brushed components with a high-efficiency brushless motor. This BLDC micro air pump DC 12V is specifically engineered to provide consistent air pressure with a significantly extended service life, making it the premier choice for devices that cannot afford downtime.
Our BLDC mini air pump wholesale solutions are optimized for silent operation and minimal electromagnetic interference (EMI). This makes the 370 BLDC perfect for:
Precision Healthcare: Advanced sphygmomanometers and portable nebulizers that require high stability and low noise.
Beauty & Aesthetic Tech: High-end facial hydration tools and oxygen infusion systems that demand a sleek, lightweight form factor.
Smart Recovery Systems: Integrated booster technology in massage chairs and pneumatic compression therapy wraps.
At only 36.0g, the PYP370 BLDC is nearly 45% lighter than standard brushed pumps, allowing engineers to reduce the overall weight of handheld devices. Beyond weight, this brushless DC air pump offers superior heat dissipation and energy efficiency, which is critical for battery-operated portable equipment.
As a leading manufacturer, we provide full OEM/ODM customization and rigorous quality testing. Whether you are searching for a long-life micro vacuum pump or a low-noise medical air pump, our factory-direct wholesale options ensure your project meets the highest global standards.
Q1: What are the main advantages of choosing the 370 BLDC mini air pump over a traditional brushed motor?
A: The BLDC (Brushless DC) motor offers a significantly longer lifespan (up to 2,000–4,000 hours depending on the configuration), lower electromagnetic interference (EMI), and higher energy efficiency. At only 36.0g, it is also much lighter than brushed versions, making it the best choice for high-end, battery-operated medical devices.
Q2: Does the 370 BLDC support PWM speed control for precise airflow adjustment?
A: Yes. Being a BLDC micro air pump dc 12V, it is compatible with PWM (Pulse Width Modulation) speed control. This allows engineers to precisely adjust the flow rate and pressure according to the device's real-time needs, which is a critical feature for smart sphygmomanometers and medical monitors.
Q3: Is this pump quiet enough for use in a clinical or home environment?
A: Absolutely. Our brushless technology reduces mechanical friction, resulting in a low-noise profile typically under 55dB (depending on the specific mounting). It is specifically designed for "silent" applications such as bedside medical equipment and premium beauty instruments.
Q4: What is the maximum pressure and vacuum performance of the 370 BLDC series?

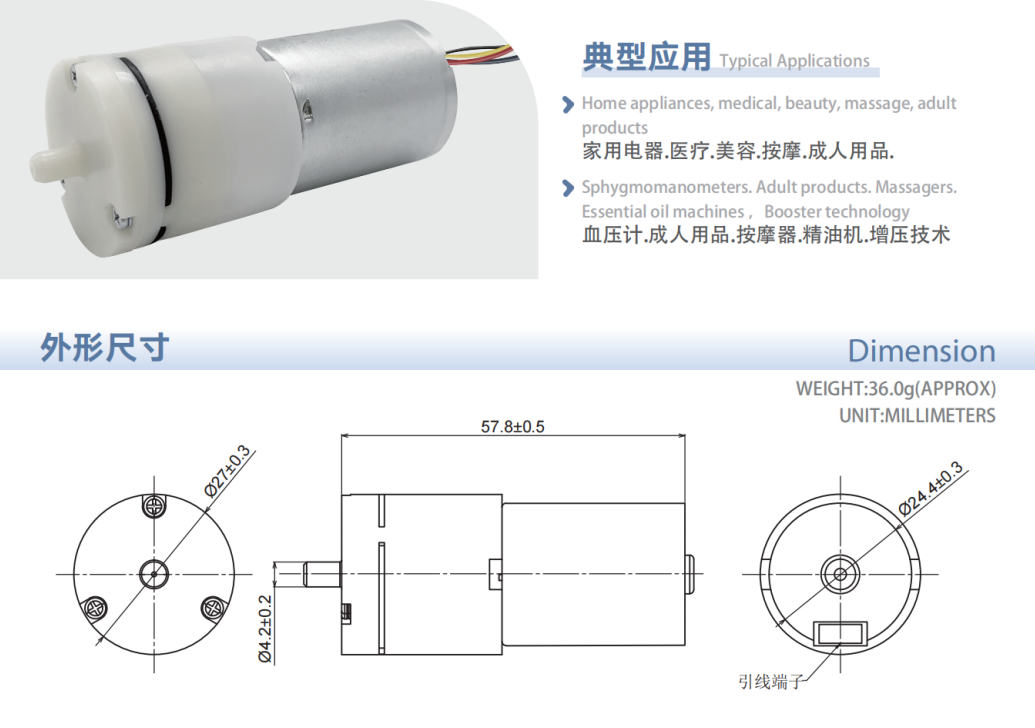

A: While performance varies based on voltage (6V/12V/24V), the 370 series is engineered to provide robust pressure for booster technology applications. Typically, these pumps can reach a maximum pressure of over 60kPa and a vacuum degree of oevr -40kPa, providing stable pneumatic power in a compact 27mm diameter frame.
Q5: Can you provide customization for the lead wires and terminals?
A: Yes. As a professional BLDC micro diaphragm air pump supplier, we offer full customization for lead wire lengths and terminal types (e.g., JST, Molex) to ensure seamless integration into your existing PCB layout. We also utilize automated overmolding to ensure the reliability of the wire connections.
